Kubota CD Series Compact Discs

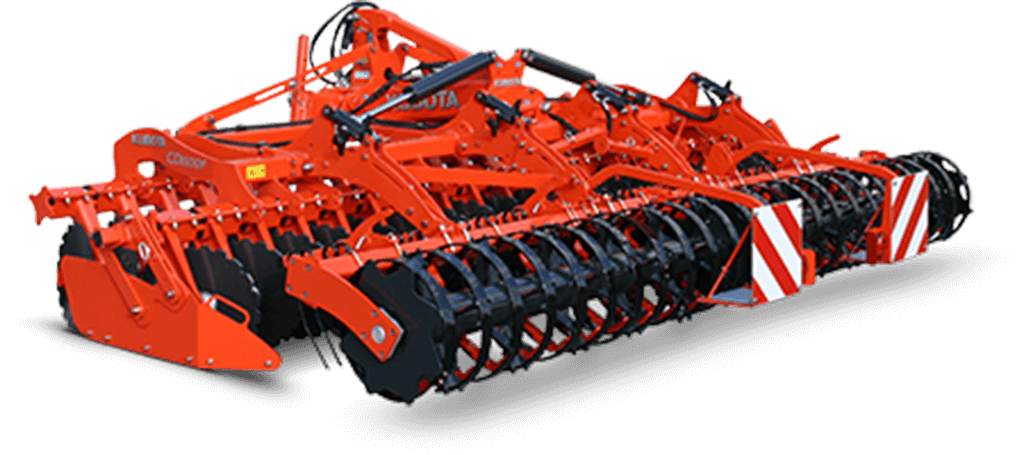

The CD1001 Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 520 x 5 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals promote long life under high pressure at fast working speeds.

The CD1001 Series is extremely sturdy and fitted with a proven frame from the Kubota cultivator range. With a reinforced headstock and 100 x 100 x 8 mm frame, the CD1001 can accommodate even the heaviest roller. Brackets for the roller are fixed at the rear of the frame for good weight transfer during road transport and at higher driving speeds. Due to the small distance between the disc sections, the CD1001 Series requires less lift capacity. Working depth is easily adjusted by spacers at the height adjustment rod. In addition, the lateral deflectors are foldable to keep transport width in line with road traffic regulations.

Each angled arm on the CD1001 Series is fitted with a 35 mm axle and large maintenance-free double ball bearing. This high-quality bearing is able to carry heavy radial and axial loads. Special side protection on the arm is achieved by 5 sealing lips and a protective joint. On the other side the disc is protected against dust by an O-ring. The CD1001 Series disc hub is fixed onto the arm by a bolt and special washers that prevent loosening. The bolt in turn is protected against soil by its position inside the arm.

The upper part of the CD1001 Series arm is fitted with special brackets to avoid lateral movement, and the cutting angle is fixed to ensure optimum quality even in dry conditions. The rear disc section is offset to the front unit to provide optimum performance and trash incorporation. A rubber shock system adjusts to the size of the disc and working speed and maintenance-free arms are mounted between rubber buffers to absorb shock from contact with obstacles. In addition, the notched discs improve penetration and rotation irrespective of plant residues.

Kubota offers a choice of rear rollers, depending on soil specifications, consolidation required, mix of soil and straw, soil surface and available lift capacity. The CD1001 Series offers an optional 550 mm diameter cage roller (weighing 90kg/m) and a heavier 565 mm diameter Actipack roller (220 kg/m) for clod crushing, very firm soil recompaction, and heavy/sticky soil conditions.

The CD2001 Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures and high working speeds.

The CD2001 Series is extremely sturdy and fitted with a proven frame from the Kubota cultivator range. With a reinforced headstock and 100 x 100 x 8 mm frame , the CD2001 Series can accommodate even the heaviest roller. Brackets for the roller are fixed at the front bar of the frame for better weight transfer during transport and at higher driving speeds. Due to the small distance between the disc sections, the CD2001 Series requires less lift capacity. Working depth is easily adjusted by spacers at the hydraulic depth cylinders. In addition, the lateral deflectors are foldable to keep transport width in line with road traffic regulations.

Each angled arm on the Kubota CD2001 Series is fitted with a 35 mm axle and large maintenance-free double ball bearing. This high-quality bearing is able to carry heavy radial and axial loads. Special side protection of the arm is achieved by 5 sealing lips and a protective joint. On the other side the disc is protected against dust by an O-ring. The CD2001 Series disc hub is fixed onto the arm by a bolt and special washers that prevent loosening. The bolt in turn is protected against soil by its position inside the arm.

The upper part of the CD2001 Series arm is fitted with special brackets to avoid lateral movement, and the cutting angle is fixed to ensure optimum quality even in dry conditions. The rear disc section is offset to the front unit to provide optimum performance and trash incorporation. A rubber shock system adjusts to the size of the disc and working speed and the maintenance-free arms are mounted between rubber buffers to absorb shock from contact with obstacles. In addition, the notched discs improve penetration and rotation irrespective of plant residues.

Kubota offers a choice of rear rollers, depending on soil specifications, consolidation required, mix of soil and straw, soil surface and available lift capacity. The CD2001 Series offers an optional 550 mm diameter cage roller (weighing 90kg/m) and a heavier 565 mm diameter Actipack roller (220 kg/m) for clod crushing, very firm soil recompaction, and heavy/sticky soil conditions.

The CD2001F Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

The CD20001F Series is extremely sturdy and fitted with a proven frame from the Kubota cultivator range. With a reinforced headstock main beam of 200 x 200 x 10 mm and a main frame of 100 x 100 x 8 mm, the CD2001F can accommodate the heaviest roller. Brackets for the roller are fixed at the front bar of the frame for better weight transfer during transport and at higher driving speeds. Due to the small distance between the disc sections, the CD2001F Series requires less lift capacity. Working depth is easily adjusted by spacers at the hydraulic depth cylinders. In addition, the lateral deflectors are foldable to keep transport width in line with road traffic regulations.

Each angled arm on the CD2001F Series is fitted with a 35 mm axle and large maintenance-free double ball bearing. This high-quality bearing is able to carry heavy radial and axial loads. Special side protection of the arm is achieved by 5 sealing lips and a protective joint. On the other side the disc is protected against dust by an O-ring. The CD2001F Series disc hub is fixed onto the arm by a bolt and special washers that prevent loosening. The bolt in turn is protected against soil by its position inside the arm.

The upper part of the CD2001F Series arm is fitted with special brackets to avoid lateral movement, and the cutting angle is fixed to ensure optimum quality even in dry conditions. The rear disc is offset to the front unit to provide optimum performance and trash incorporation. A rubber shock system adjusts to the size of the disc and working speed and the maintenance-free arms are mounted between rubber buffers to absorb shock from contact with obstacles. In addition, the notched discs improve penetration and rotation irrespective of plant residues.

Kubota offers a choice of rear rollers, depending on soil specifications, consolidation required, mix of soil and straw, soil surface and available lift capacity. The CD2001F Series offers an optional 550 mm diameter cage roller (weighing 90kg/m) and a heavier 565 mm diameter Actipack roller (220 kg/m) for clod crushing, very firm soil recompaction, and heavy/sticky soil conditions.

The CD2001T Series provides consistent cutting quality due to little lateral movement of the disc arm. A heat-treated and hardened 600 x 6 mm conical disc provides long wear life. Well-protected maintenance-free disc hubs and double roller high-speed bearings with 5 lip seals are robust under large pressures at high working speeds.

The CD20001T Series is extremely sturdy and fitted with a proven frame from the Kubota cultivator range. With a reinforced headstock main beam of 200 x 300 x 10 mm and a main frame of 100 x 100 x 8 mm, the CD2001T can be equipped with the heaviest roller. Brackets for the roller are fixed at the front bar of the frame for better weight transfer during transport and at higher driving speeds. Due to the small distance between the disc sections, the CD2001T Series requires less lift capacity. Working depth is easily adjusted by spacers at the hydraulic depth cylinders. In addition, the lateral deflectors are foldable to keep transport width in line with road traffic regulations.

Each angled arm on the CD2001T Series is fitted with a 35 mm axle and large maintenance-free double ball bearing. This high-quality bearing is able to carry heavy radial and axial loads. Special side protection of the arm is achieved by 5 sealing lips and a protective joint. On the other side the disc is protected against dust by an O-ring. The CD2001T Series disc hub is fixed onto the arm by a bolt and special washers that prevent loosening. The bolt in turn is protected against soil by its position inside the arm.

The upper part of the CD2001T Series arm is fitted with special brackets to avoid lateral movement, and the cutting angle is fixed to ensure optimum quality even in dry conditions. The rear disc section is offset to the front unit to provide optimum performance and trash incorporation. A rubber shock system adjusts to the size of the disc and working speed and the maintenance-free arms are mounted between rubber buffers to absorb shock from contact with obstacles. In addition, the notched discs improve penetration and rotation irrespective of plant residues.

Kubota offers a choice of rear rollers, depending on soil specifications, consolidation required, mix of soil and straw, soil surface and available lift capacity. The CD2001T Series offers an optional 550 mm diameter cage roller (weighing 90kg/m) and a heavier 565 mm diameter Actipack roller (220 kg/m) for clod crushing, very firm soil recompaction, and heavy/sticky soil conditions.
