Kubota Land Pride Landscape Rakes
Looking for a Kubota Land Pride Landscape Rakes? Growers Services sells, services and supports Kubota implements from our Kubota branches at Mildura, Ballarat, Swan Hill, Echuca, St Arnaud and Renmark.

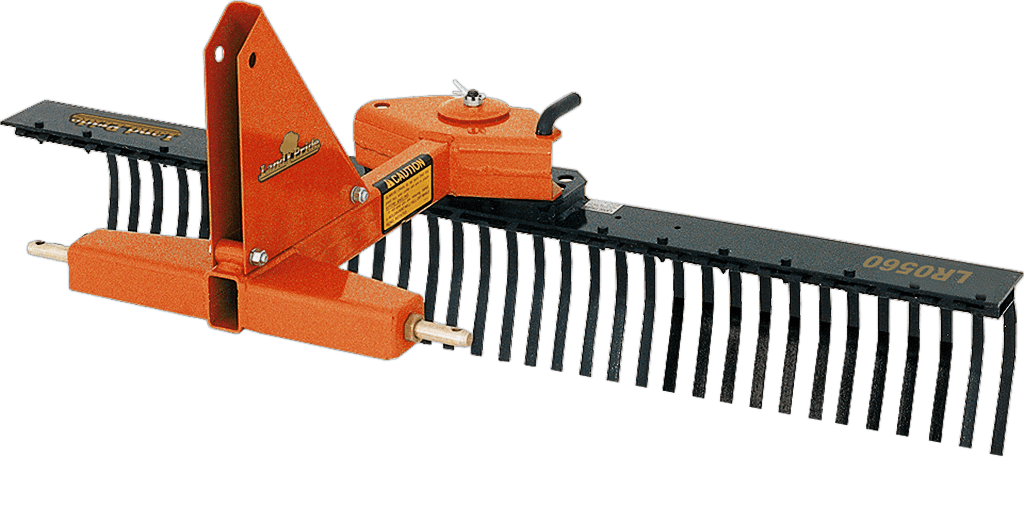

The Land Pride LR0548 & LR0560 Landscape Rakes are perfectly suited for light-duty use by landscapers and rental yards with applications at housing projects, golf courses, terracing sites, run-off control projects and restoration sites to perform final soil surface preparation and reshaping soil and/or aggregate profile. Optional dual gauge wheels are also available to enable a more consistent finish over uneven or undulating terrain.
Features
QUICK HITCH COMPATIBLE
As all other Land Pride products, the LR05 Series is compatible with the Quick Hitch system.
HEAVY FRAME PLATE
Heavy frame plate adds durability.
TEETH
High carbon spring steel teeth have “memory” to spring back to shape and are sized to eliminate premature bending and tooth breakage.
EASY TOOTH REPLACEMENT
Teeth alignment secured by channel frame design allows easy single tooth replacement.
OPTIONAL GAUGE WHEELS
Optional gauge wheels provide ease of depth control.
Specifications
| Model | LR0548 | LR0560 |
|---|---|---|
| Specifications | ||
| Min. Horsepower | 15 hp | 15 hp |
| Max. Horsepower | 25 hp | 25 hp |
| Max. Angle | 30° | 30° |
| Max. Offset | N/A | N/A |
| No. of Teeth | 26 | 34 |
| Tooth Spacing – Centres | 44 mm | 44 mm |
| Tooth Material | High Carbon Spring Steel | High Carbon Spring Steel |
| Tooth Thickness | 6 mm | 6 mm |
| Tooth Width | 19 mm | 19 mm |
| Rake Height | 305 mm | 305 mm |
| Hitch | ||
| Cat. I | Yes | Yes |
| Cat. II | No | No |
| Quick Hitch Compatible | Yes | Yes |
| Dimensions | ||
| Working Width | 122 cm | 152 cm |
| Weight | 44 kg | 51 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
The LR1660, LR1672, LR1684 and LR1696 Landscape Rakes from Land Pride perform final soil surface preparation and reshaping soil and/or aggregate profile and offer angling capabilities to meet specific finishing needs. Optional gauge wheel packages are also available to enable a more consistent finish over uneven or undulating terrain. The LR16 offers a flip-down grader to expedite material distribution and contouring tasks. These Land Pride Landscape Rakes are perfectly suited for use by landscapers, contractors, and rental yards and have applications at housing and road construction projects, golf courses, terracing sites, run-off control projects, and reclamation and reforestation sites. *S/N 872034+ is compatible with QH05.
Features
QUICK-HITCH COMPATIBLE
Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.
TEETH
High carbon spring steel teeth have “memory” to spring back to shape and are sized to eliminate premature bending and tooth breakage.
EASY TOOTH REPLACEMENT
Teeth alignment secured by channel frame design allows easy single tooth replacement.
HEAVY FRAME PLATE
Heavy frame plate adds durability.
OPTIONAL GAUGE WHEELS
Optional gauge wheels provide ease of depth control.
OPTIONAL HYDRAULIC ANGLING KIT
Allows the operator to change rake angle from the tractor seat.
REAR BLADE ATTACHMENT
The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility
Specifications
| Model | LR1660 | LR1672 | LR1684 | LR1696 |
|---|---|---|---|---|
| Specifications | ||||
| Min. Horsepower | 20 hp | 20 hp | 20 hp | 20 hp |
| Max. Horsepower | 40 hp | 40 hp | 40 hp | 40 hp |
| Max. Angle | 45° | 45° | 45° | 45° |
| Max. Offset | N/A | N/A | N/A | N/A |
| No. of Teeth | 30 | 36 | 42 | 48 |
| Tooth Spacing – Centres | 50 mm | 50 mm | 50 mm | 50 mm |
| Tooth Material | High Carbon Spring Steel | High Carbon Spring Steel | High Carbon Spring Steel | High Carbon Spring Steel |
| Tooth Thickness | 8 mm | 8 mm | 8 mm | 8 mm |
| Tooth Width | 25 mm | 25 mm | 25 mm | 25 mm |
| Rake Height | 419 mm | 419 mm | 419 mm | 419 mm |
| Hitch | ||||
| Cat. I | Yes | Yes | Yes | Yes |
| Cat. II | No | No | No | No |
| Quick Hitch Compatible | Yes | Yes | Yes | Yes |
| Dimensions | ||||
| Working Width | 152 cm | 183 cm | 213 cm | 244 cm |
| Weight | 109 kg | 122 kg | 132 kg | 143 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.

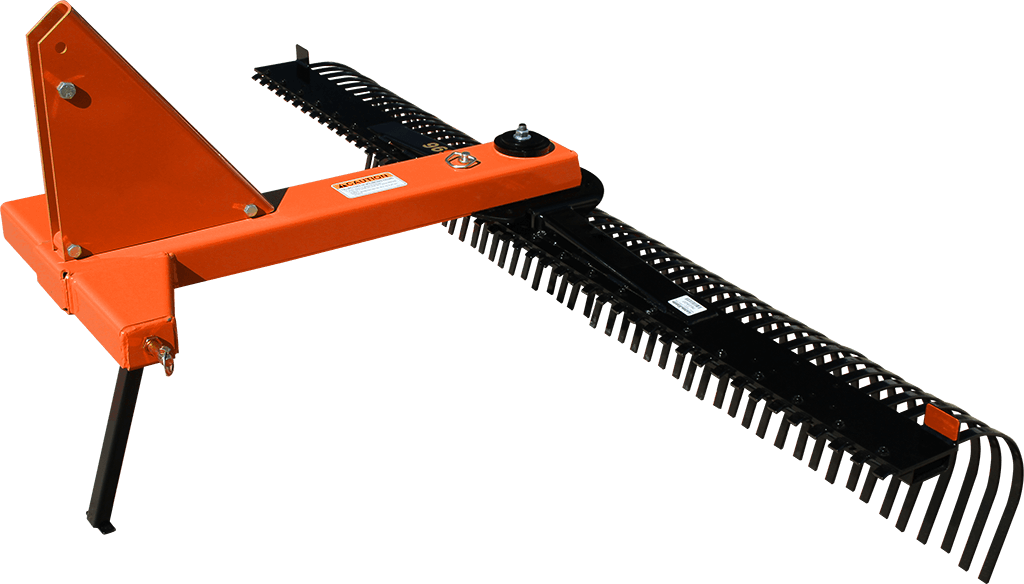

Land Pride's LR26 Series Landscape Rakes are ideal for spreading rock, moving debris, preparing seed beds, and reshaping soil and/or aggregate profile. LR26 Rakes are available in 84" (LR2684) and 96" (LR2696) widths. These Landscape Rakes offer seven forward angles up to 45 degrees. The LR26 is designed for tractors up to 60 HP and features a quick-hitch compatible Cat. 1 Hitch and can be ordered with an optional hydraulic angling kit.
Features
QUICK-HITCH COMPATIBLE
Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.
TEETH
High carbon spring steel teeth have “memory” to spring back to shape and are sized to eliminate premature bending and tooth breakage.
EASY TOOTH REPLACEMENT
Teeth alignment secured by channel frame design allows easy single tooth replacement.
HEAVY FRAME PLATE
Heavy frame plate adds durability.
OPTIONAL GAUGE WHEELS
Optional gauge wheels provide ease of depth control.
OPTIONAL HYDRAULIC ANGLING KIT
Allows the operator to change rake angle from the tractor seat.
Specifications
| Model | LR2684 | LR2696 |
|---|---|---|
| Specifications | ||
| Min. Horsepower | 25 hp | 25 hp |
| Max. Horsepower | 60 hp | 60 hp |
| Max. Angle | 45° | 45° |
| Max. Offset | N/A | N/A |
| No. of Teeth | 42 | 48 |
| Tooth Spacing – Centres | 50 mm | 50 mm |
| Tooth Material | High Carbon Spring Steel | High Carbon Spring Steel |
| Tooth Thickness | 8 mm | 8 mm |
| Tooth Width | 25 mm | 25 mm |
| Rake Height | 419 mm | 419 mm |
| Hitch | ||
| Cat. I | Yes | Yes |
| Cat. II | No | No |
| Quick Hitch Compatible | Yes | Yes |
| Dimensions | ||
| Working Width | 213 cm | 244 cm |
| Weight | 150 kg | 158 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.

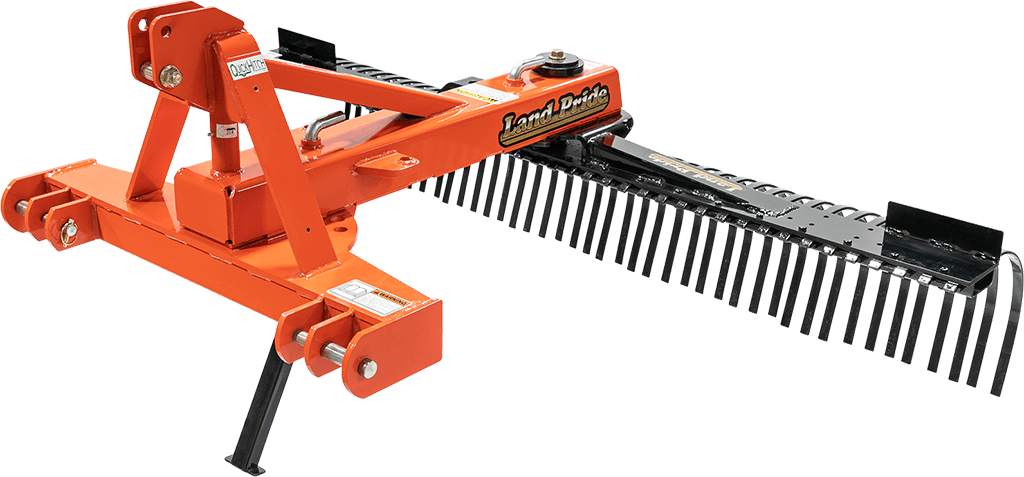

Land Pride's LR3784 & LR3796 Landscape Rakes are perfectly suited for housing construction, road reconditioning, run-off control projects, and reforestation sites to spread rock, move debris, seed preparation, final soil surface preparation, and reshaping soil and/or aggregate profile.
Features
QUICK-HITCH COMPATIBLE
Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.
HEAVY FRAME PLATE
Heavy frame plate adds durability.
OPTIONAL GAUGE WHEELS
Optional gauge wheels provide ease of depth control.
OPTIONAL HYDRAULIC ANGLING KIT
Allows the operator to change rake angle from the tractor seat.
REAR BLADE ATTACHMENT
The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility
TEETH
High carbon spring steel teeth have “memory” to spring back to shape and are sized to eliminate premature bending and tooth breakage.
EASY TOOTH REPLACEMENT
Teeth alignment secured by channel frame design allows easy single tooth replacement.
Specifications
| Model | LR3784 | LR3796 |
|---|---|---|
| Specifications | ||
| Min. Horsepower | 30 hp | 30 hp |
| Max. Horsepower | 80 hp | 80 hp |
| Max. Angle | 30° | 30° |
| Max. Offset | 45° | 45° |
| No. of Teeth | 42 | 48 |
| Tooth Spacing – Centres | 50 mm | 50 mm |
| Tooth Material | High Carbon Spring Steel | High Carbon Spring Steel |
| Tooth Thickness | 8 mm | 8 mm |
| Tooth Width | 25 mm | 25 mm |
| Rake Height | 419 mm | 419 mm |
| Hitch | ||
| Cat. I | Yes | Yes |
| Cat. II | Yes | Yes |
| Quick Hitch Compatible | Yes | Yes |
| Dimensions | ||
| Working Width | 213 cm | 244 cm |
| Weight | 209 kg | 219 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
