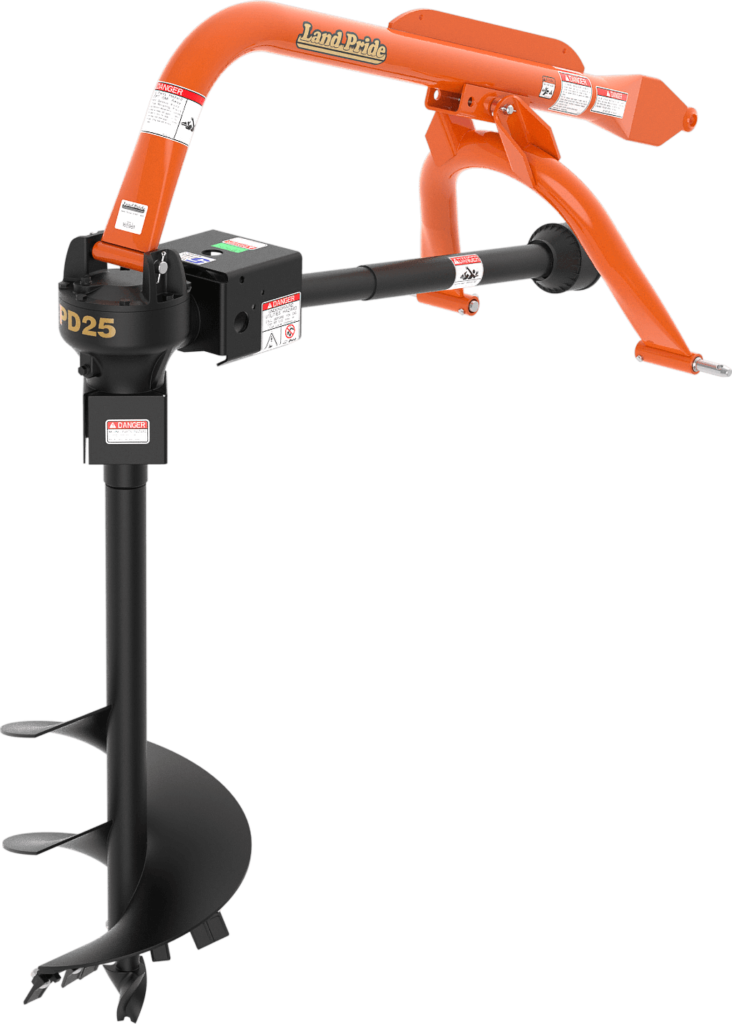

Kubota Land Pride PD Series Post Hole Diggers
Looking for a Kubota Land Pride PD Series Post Hole Diggers? Growers Services sells, services and supports Kubota implements from our Kubota branches at Mildura, Ballarat, Swan Hill, Echuca, St Arnaud and Renmark.
The PD10 Series Post Hole Digger is just right for Category 1 three-point attachment for subcompact utility tractors. This unit offers a 30" (76cm) auger length and a choice of 6", 9", & 12" auger flights with cast steel fishtail tips for quick piloting and faster hole starting. Homeowners, landscapers, and rental yards will find this unit very effective for occasional duty and for working and manoeuvring in tight spots.
The PD25 Series Post Hole Diggers are the perfect fit for heavy-duty applications on nurseries, tree farms, landscapers, contractors, construction companies & farms. The PD25 Series is designed for Category 1 or 2 three-point attachment, offers a 48" (122cm) auger length, and a choice of 6", 9", 12", 15", 18" or 24" auger flights with cast steel fishtail tips.
The Land Pride PD35 Series Post Hole Digger is designed to meet the industrial duty applications of landscapers, construction companies, nurseries, ranchers, and farmers. The PD35 is designed for Category 1 or 2 three-point attachment and offers a 48" (122cm) auger length and 9", 12", 15", 18" or 24" auger flights with cast steel fishtail tips.
Accessories include a storage stand, hydraulic down pressure kit (requires selective control valve (SCV) on tractor) and auger extensions.
Features
Extensive range of augers
The PD10 is available with auger sizes from 6" (15.2cm) to 12" (30.5cm) at 30" (76.2cm) long. The PD25 & PD35 has auger options up to 18" (45.7cm) and 48" (1.22m) long. Auger flights are 6mm thick and have forged and individually replaceable teeth.
Driveline
CAT II shear bolt driveline on PD10 and CAT III on PD25/35
Gearbox warranty
3 year parts and labour warranty on PD10 gearbox. 5 years on PD25/35
Specifications
| Model | PD10 | PD25 | PD35 |
|---|---|---|---|
| Specifications | |||
| Min. Horsepower | 15 hp | 25 hp | 30 hp |
| Max. Horsepower | 30 hp | 55 hp | 75 hp |
| Weight Without Auger | 54.4 kg | 84.4 kg | 105.7 kg |
| Output Shaft | 2" (5.1cm) | 2" (5.1cm) | 2" (5.1cm) |
| Hitch - Cat I | Yes | Yes | Yes |
| Hitch - Cat II | No | Yes | Yes |
| Yoke - Tubing | 73 mm | 73 mm | 73 mm |
| Boom - Tubing | 73 mm | 89 mm | 89 mm |
| Max. PTO Speed | 300 rpm | 300 rpm | 300 rpm |
| Driveline | Shear Bolt | Shear Bolt | Shear Bolt |
| Auger Length | 76.2 cm | 122 cm | 122 cm |
| Min. Dirt Auger Sizes | 6" (152mm) | 6" (152mm) | 6" (152mm) |
| Max. Dirt Auger Sizes | 12" (305mm) | 18" (457mm) | 18" (457mm) |
| Min. Rock Auger Sizes | N/A | 6" (152mm) | 6" (152mm) |
| Max. Rock Auger Sizes | N/A | 18" (457mm) | 18" (457mm) |
| Auger Flight Thickness | 6.4 mm | 6.4 mm | 6.4 mm |
| Short Auger Extension | 7" (178mm) | 7" (178mm) | 7" (178mm) |
| Long Auger Extension | 14" (356mm) | 14" (356mm) | 14" (356mm) |
| Optional Hydraulic Down Pressure Kit | Yes | Yes | Yes |
| Optional Storage Stand | Yes | Yes | Yes |
| Optional Alignment Handle | Yes | Yes | Yes |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
The SA20 is ideal for landscapers, contractors, construction companies, farmers, ranchers, and others.
Features
Hydraulic hoses
Hydraulic hoses are routed out the top of the gearbox housing, allowing housing to follow auger into a deeper hole without damaging hoses.
Level indicator
Patented level indicator makes it easy to know when the auger is vertical to drill straight holes
Offset mount
The Skid Augers have a center and 18" offset mount to the right to adjust drill position.
Specifications
| Model | SA20 |
|---|---|
| Auger Drive Specifications | |
| Min. Hydraulic Flow | 23 l/min |
| Max. Hydraulic Flow | 57 l/min |
| Base Weight w/o Options | 20.8 kg |
| Max. Auger Speed | 110 rpm |
| Gearbox | Hydraulically Driven Planetary |
| Gearbox Oil Capacity | 414 mL |
| Hitch | Universal Quick Attach |
| Hydraulic Hose Length | 2.4 m |
| Hydraulic Couplers | Male Pioneer |
| Auger Specifications | |
| Auger Flighting Thickness | 8 mm |
| Auger Teeth | Forged |
| Auger Length | 1.29 m |
| Min. Dirt Auger Size | 6" (152mm) |
| Max. Dirt Auger Size | 36" (914mm) |
| Min. Rock Auger Size | 6" (152mm) |
| Max. Rock Auger Size | 24" (610mm) |
| Short Auger Extension | 24" (610mm) |
| Long Auger Extension | 48" (1219mm) |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
