Kubota PH Series Power Harrows

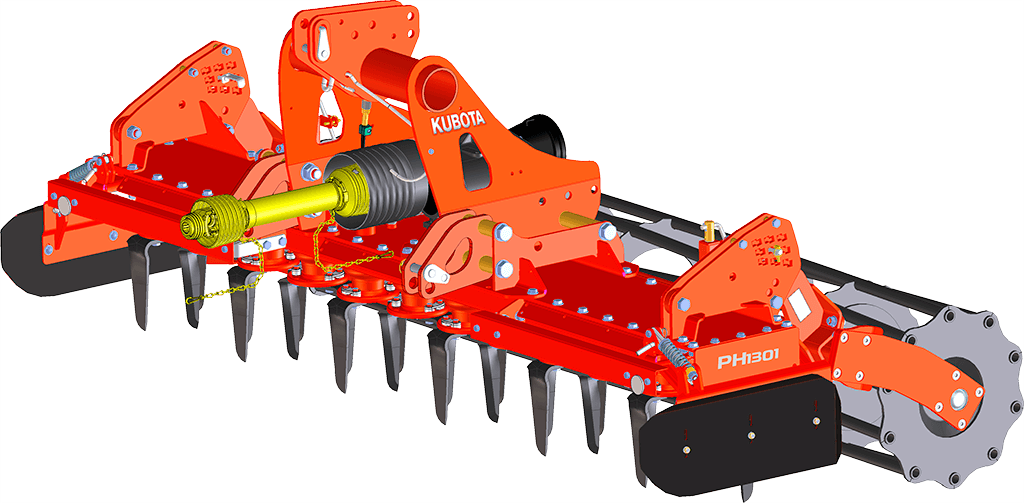

The Kubota PH1001 Series performs well in difficult soils due the robust trough design and large clearance between the tine holder and trough bottom. This allows residues and stones to pass freely and provides excellent results in mulch conditions. A 5 mm profiled plate and 5 mm top plate form the 120 x 400 mm trough. Fully welded rotor housings ensure high bend and torque resistance, while precise rotor positioning and a 10 mm reinforcement plate guarantee strong performance.

The Kubota “family” design headstock incorporates strength and durability while limiting machine weight. The headstock can be used across the PH1001 and PH2001 power harrows, and is tough enough to couple with the complete range of Kubota seed drills.

The Kubota PH1001 Series comes standard with quick-fit 12 x 280 mm tines that fix to the tine holder by pin and clip. All tines can be quickly replaced without tools. The tines are arranged in varying angle positions to prevent damage caused by stones and to ensure even levelling. This also reduces peak loads on the driveline and results in smoother running and less fuel consumption. Toughened carbide layer quick-fit tines are optional, and minimise downtime thanks to excellent wear even in tough and abrasive soils.

Kubota offers a range of rollers to suit various soil conditions and crop establishment systems. The 550 mm diameter cage roller suits light to medium soils and dry working conditions, and is good for basic depth control. The versatile 575 mm packer roller suits medium to heavy soil, especially as part of a heavy power harrow / seed drill combination. The 565 mm Actipack roller is great in medium to heavy soils and perfect for aggressive seedbed preparation.

Kubota’s high performance rear levelling bar is infinitely height adjustable. The turnbuckle adjustment is easy to use, even with a seed drill mounted. A scale ensures even height across the full working width, and an in-built spring maintains the bar in a consistent operating position.

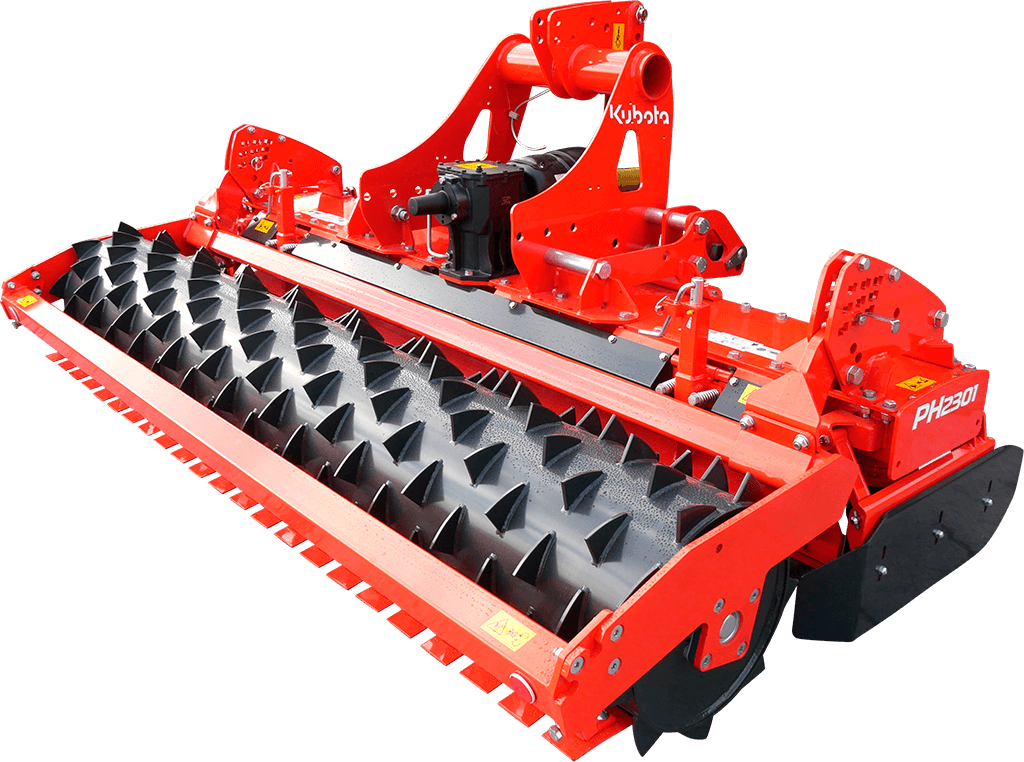

The Kubota PH2001 Series provides optimum performance in difficult soils, with a robust trough and large clearance between the tine holder and trough bottom. This allows large amounts of residues and stones to pass freely and provides excellent results in mulch conditions. The PH2001 Series has two profiled 6 mm plates ensuring precise rotor spacing, and high bend resistance in the 140 x 400 mm trough. Like all Kubota power harrows, there are 4 rotors per metre of trough.

The Kubota “family” design headstock incorporates strength and durability while limiting machine weight. The headstock can be used across the PH1001 and PH2001 power harrows, and is tough enough to couple with the complete range of Kubota seed drills.

The Kubota PH2001 Series comes standard with quick-fit 15 x 330 mm carbide coated tines that fix to the tine holder by pin and clip. All tines can be quickly replaced without tools. The tines are arranged in varying angle positions to prevent damage caused by stones and to ensure even levelling. This also reduces peak loads on the driveline and results in smoother running and less fuel consumption. The carbide hard-faced tines guarantee high reliability, excellent wear and very low maintenance even in tough, abrasive soils.

Kubota offers a range of rollers to suit various soil conditions and crop establishment systems. The 550 mm diameter cage roller suits light to medium soils and dry working conditions, and is good for basic depth control. The versatile 575 mm packer roller suits medium to heavy soil, especially as part of a heavy power harrow / seed drill combination. The 565 mm Actipack roller is great in medium to heavy soils and perfect for aggressive seedbed preparation.

Kubota’s high performance rear levelling bar is infinitely height adjustable. The turnbuckle adjustment is easy to use, even with a seed drill mounted. A scale ensures even height across the full working width, and an in-built spring maintains the bar in a consistent operating position.

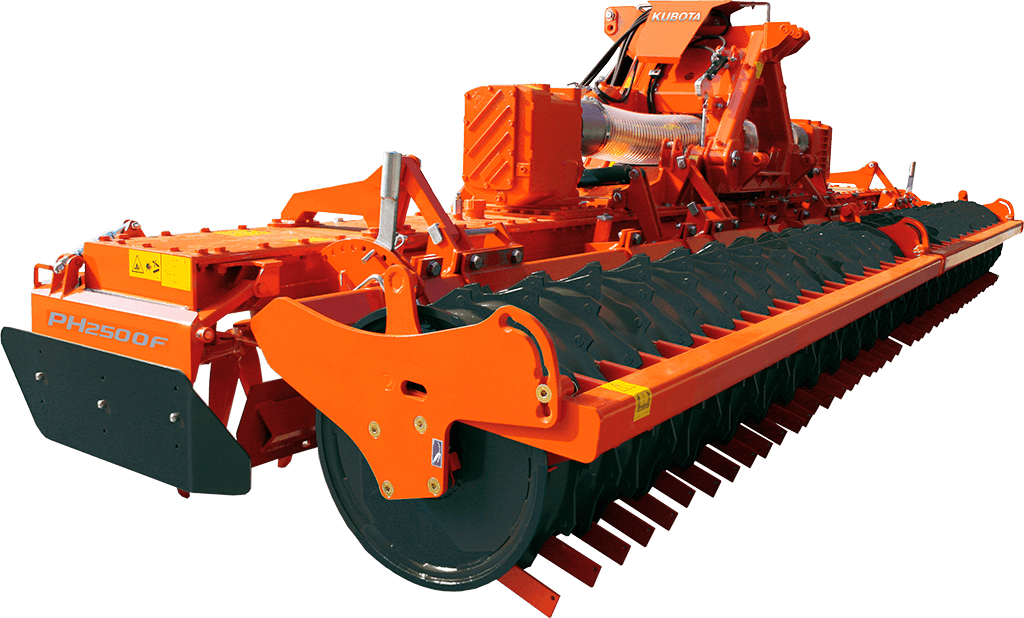

The Kubota PH2000F Series has an innovative trough design without a lateral frame. The open design saves weight and offers high 95 mm clearance between the tine holder and trough bottom. Double conical bearings and 50 mm rotor shaft in combination with removable tine holders and quick-fit carbide coated tines guarantee high reliability, excellent wear and very low maintenance even in abrasive soils.

The Kubota PH2000F Series comes standard with quick-fit 15 x 330 mm carbide coated tines that fix to the tine holder by pin and clip. All tines can be quickly replaced without tools. The tines are arranged in varying angle positions to prevent damage caused by stones and to ensure even levelling. This also reduces peak loads on the driveline and results in smoother running and less fuel consumption.

Kubota offers a range of rollers to suit various soil conditions and crop establishment systems. The 550 mm diameter cage roller suits light to medium soils and dry working conditions, and is good for basic depth control. The versatile 575 mm packer roller suits medium to heavy soil, especially as part of a heavy power harrow / seed drill combination. The 565 mm Actipack roller is great in medium to heavy soils and perfect for aggressive seedbed preparation.

The PH2000F Series gearbox is rated to 300 PTO hp, and the side drive gearboxes are fitted with PTO clutches to protect the gear trough.

The Kubota PH3000F Series has an innovative trough design without a lateral frame. The clear design saves weight and offers 95 mm clearance between the tine holder and trough bottom. Double conical bearings and 50 mm rotor shaft in combination with removable tine holders and quick-fit tines guarantee high reliability and very low maintenance.

The headstock incorporates strength and durability while limiting machine weight. It holds the standard gearbox oil coolers and oil filter.

The Kubota PH3000F Series comes standard with quick-fit 18 x 330 mm carbide coated tines that fix to the tine holder by pin and clip. All tines can be quickly replaced without tools. The tines are arranged in varying angle positions to prevent damage caused by stones and to ensure even levelling. This also reduces peak loads on the driveline and results in smoother running and less fuel consumption. The carbide hard-faced tines guarantee high reliability, excellent wear and very low maintenance even in tough, abrasive soils.

Kubota offers a range of rollers to suit various soil conditions and crop establishment systems. The 550 mm diameter cage roller suits light to medium soils and dry working conditions, and is good for basic depth control. The versatile 575 mm packer roller suits medium to heavy soil, especially as part of a heavy power harrow / seed drill combination. The 565 mm Actipack roller is great in medium to heavy soils and perfect for aggressive seedbed preparation.

The PH3000F Series gearbox is rated to a massive 400 PTO hp. The gearbox comes standard with oil coolers and a 2-speed shift lever for changing rotor speeds. The side drive gearboxes are fitted with PTO clutches to protect the gear trough.
