Kubota Land Pride Rear Grader Blades
Looking for a Kubota Land Pride Rear Grader Blades? Growers Services sells, services and supports Kubota implements from our Kubota branches at Mildura, Ballarat, Swan Hill, Echuca, St Arnaud and Renmark.
Land Pride RB05 Rear Blades are an excellent and economical choice for applications in leveling, finish grading, and backfilling at feedlots, building sites, nurseries, and maintenance operations on small farms and home sites. The RB05 is the perfect companion for your sub-compact tractor.

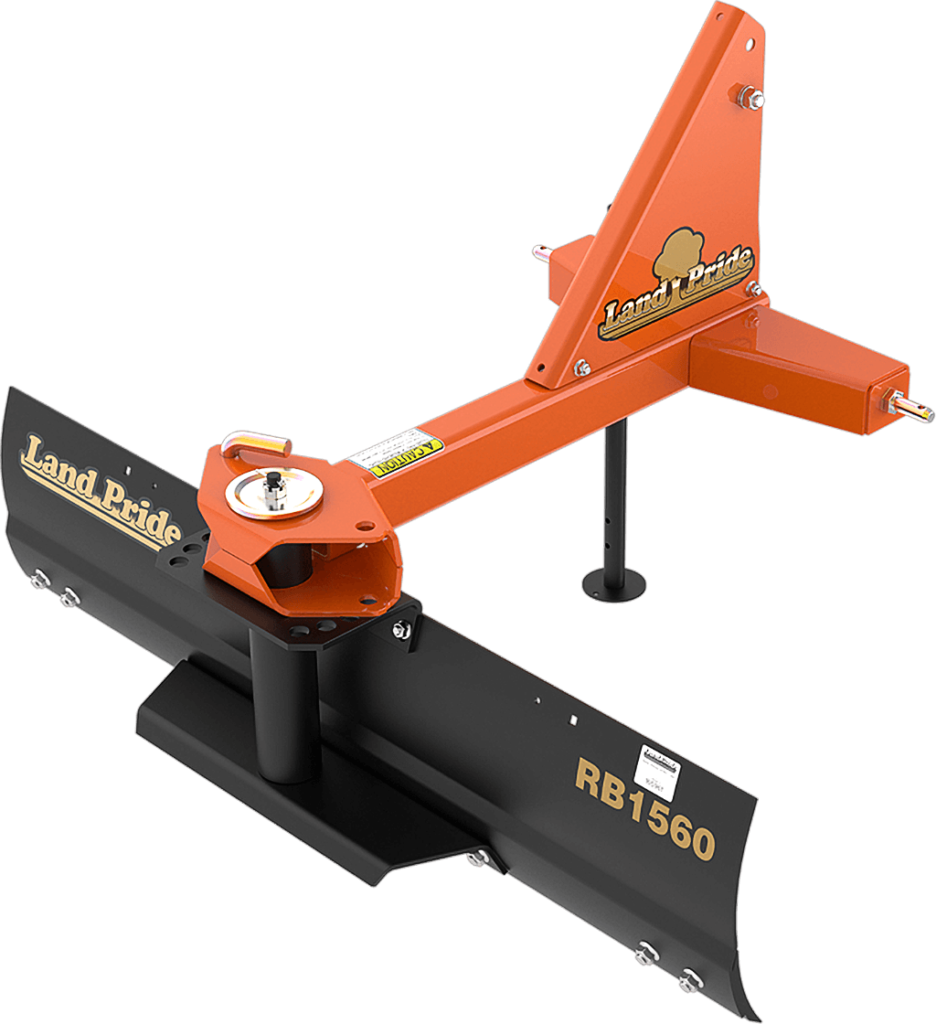

Land Pride RB15 Series Rear Blades are an excellent and economical choice for applications in leveling, finish grading, and backfilling at feedlots, outdoor arenas, building sites, nurseries, and maintenance operations on farms, ranches, and home owner lanes and roadways. The multitude of forward and reverse working angles as well as moldboard offset capability allows the operator to work right up next to retaining walls, abutments and raised curbing. They are excellent for snow removal in the pulling or push blade mode. A retractable parking stand is included to accommodate easier blade removal, storage and remount capabilities. *S/N 872034+ is compatible with QH05.
Land Pride RB16 Series Rear Blades offer 3-way positioning (blade angle, blade tilt, and blade offset) and are an excellent choice for leveling, finish grading, and backfilling applications at feedlots, outdoor arenas, building sites, nurseries, and maintenance operations on farms, ranches, or home owner lanes, and roadways. They are excellent for snow removal in pulling or push blade mode. Their offset and tilt capability make them an excellent choice for construction and maintenance of drainage ditches, waterways, soil contours, and for maintaining silage pit operations. *S/N 872034+ is compatible with QH05.
Features
Blade offsets
Manually adjust offset to move moldboard over and keep hitch centered on tractor.
Blade angles
There are many angles and positions for the rear blade series, which suits diverse jobs and results.
Cutting edge
The heat treated cutting edge protects the moldboard edge.
Specifications
| Model | RB0548 | RB1560 | RB1672 | RB2684 |
|---|---|---|---|---|
| Specifications | ||||
| Min. Horsepower | 17 hp | 17 hp | 20 hp | 25 hp |
| Max. Horsepower | 25 hp | 40 hp | 40 hp | 60 hp |
| Max. Angle Forward | 30° | 45° | 45° | 45° |
| Max. Angle Reverse | 30° | 30° | 30° | 30° |
| Blade Tilt Up | N/A | N/A | 15° | 15° |
| Blade Tilt Down | N/A | N/A | 15° | 15° |
| Offset - Left or Right | 254 mm | 305 mm | 305 mm | 305 mm |
| Moldboard | ||||
| Moldboard Height | 343 mm | 356 mm | 356 mm | 445 mm |
| Moldboard Thickness | 6 mm | 6 mm | 6 mm | 8 mm |
| Cutting Edge Width | 76 mm | 152 mm | 152 mm | 152 mm |
| Cutting Edge Thickness | 10 mm | 13 mm | 13 mm | 13 mm |
| Hitch | ||||
| Cat. I | Yes | Yes | Yes | Yes |
| Dimensions | ||||
| Working Width | 122 cm | 152 cm | 183 cm | 213 cm |
| Weight | 58 kg | 112 kg | 134 kg | 180 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.

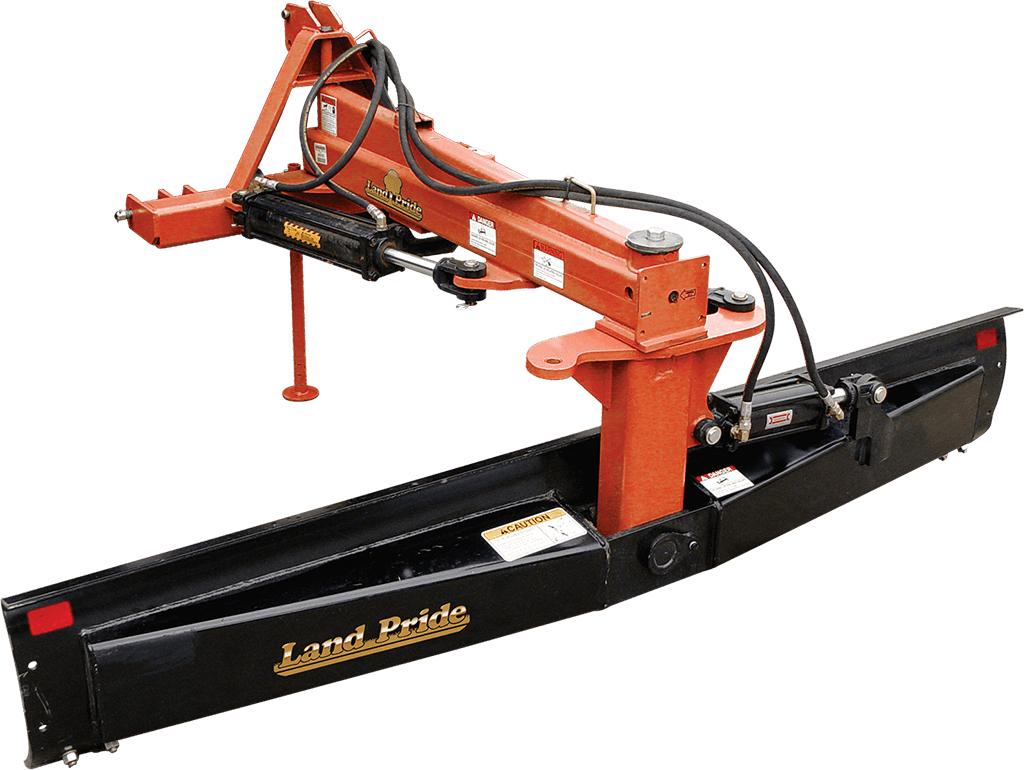

Land Pride's RBT35 & RBT45 Series Hydraulic Rear Blades are an excellent choice for leveling, finish grading, and backfilling applications at large feedlots, outdoor arenas, construction sites, nurseries, and maintenance operations on farms, ranches, or homeowner lanes or roadways. They are excellent for snow removal in the pulling or the push-blade mode. Their hydraulic or manual angle, offset, and tilt capability make them ideal for construction and maintenance of drainage ditches, waterways, and soil contours. They are also very effective in maintaining silage pit operations.
Features
Fits Quick Hitch
Add in a Land Pride Quick Hitch to quickly and easily attach without leaving the tractor seat.
Reversible cutting edge
Get twice the wear from the cutting edge by flipping it over.
Fully welded main frame
Fully welded adds overall strength and rigidity to blade frame.
Blade offsets left and right up to 30”
Allows the operator to position the end of the moldboard beyond tractor tire and close to solid obstacles such as fences, buildings and abutments.
- 9 positions manually: Center, 4 positions left and 4 positions right
- Hydraulically: Any position up to 30”
Blade tilts up and down up to 20o
Allows the operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches of various sizes.
Specifications
| Model | RBT3584 | RBT3596 | RBT4596 | RBT45108 |
|---|---|---|---|---|
| Specifications | ||||
| Max. Horsepower - 2WD | 80 hp | 80 hp | 125 hp | 125 hp |
| Max. Horsepower - 4WD | 65 hp | 65 hp | 125 hp | 125 hp |
| Max. Angle Manual | 40° | 40° | 45° | 45° |
| Max. Angle Hydraulic | 50° | 50° | 45° | 45° |
| Blade Tilt Up | 20° | 20° | 15° | 15° |
| Blade Tilt Down | 20° | 20° | 15° | 15° |
| Tilt Cylinder Bore | 51 mm | 51 mm | 76 mm | 76 mm |
| Max. Offset | 76 cm | 76 cm | 89 cm | 89 cm |
| Offset Cylinder Bore | 89 mm | 89 mm | 102 mm | 102 mm |
| Moldboard | ||||
| Moldboard Height | 432 mm | 432 mm | 483 mm | 483 mm |
| Moldboard Thickness | 8 mm | 8 mm | 8 mm | 8 mm |
| Cutting Edge Width | 152 mm | 152 mm | 152 mm | 152 mm |
| Cutting Edge Thickness | 13 mm | 13 mm | 13 mm | 13 mm |
| Hitch | ||||
| Cat. I | Yes | Yes | No | No |
| Cat. II | Yes | Yes | Yes | Yes |
| Cat. III | No | No | Yes | Yes |
| Dimensions | ||||
| Working Width | 213 cm | 244 cm | 244 cm | 274 cm |
| Weight | 322 kg | 338 kg | 513 kg | 529 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
