Kubota RM Series Reversible Ploughs

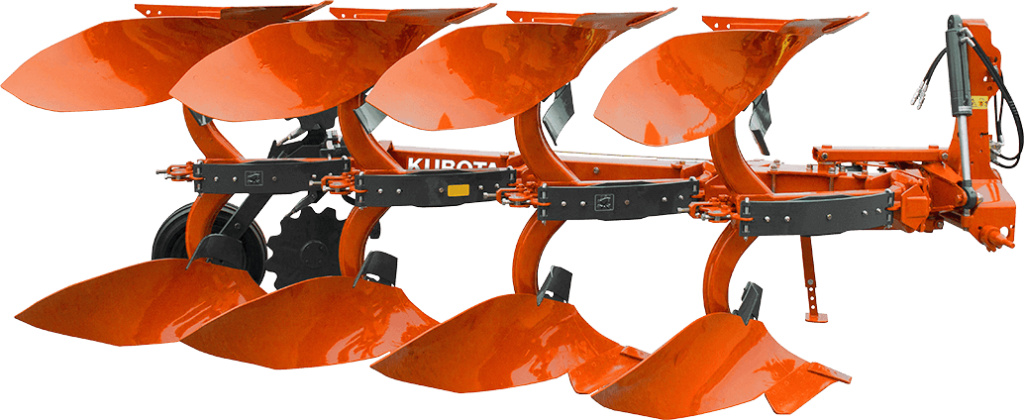

The RM2005 Series is lightweight for low lift requirements and easy to operate, adjust and pull. The first furrow adjustment via the parallelogram system automatically corrects the alignment, meaning easy adaptation to different tractors and wheels. The plough bodies also release independently, for unrivalled non-stop operation and low maintenance.

Kubota’s heat-treatment expertise provides steel that withstands even the toughest conditions. While other manufacturers add steel and therefore weight for strength, our robust heat-treatment technology delivers the best performance-to-weight ratio on the market, with excellent hardness and wear quality.

Kubota plough frames are heat treated by induction twice, with closely monitored temperature transfer, to ensure strong and uniform steel throughout that’s as much as 3 times stronger. Our frames are robust, flexible and durable, and the lighter weight ratio improves pulling force, lift capacity, wear and tear, fuel consumption and ultimately tractor lifetime. RM2005 frames have no welds and therefore no critical fail points, and the 150 x 150 mm rig will do 3, 4 or 5 furrows.

The RM2005 Series includes 2 bodies, both good for tractors with wide tyres. The steel board (#28) is suitable for all soils, wheels up to 710 mm, easy pulling and good turning. The plastic mouldboard (#34) is longer and slimmer, for soils with high humus content but no sharp stones. Working depths vary from 150 to 300/350 mm, respectively.

Kubota’s automatic non-stop Auto-Reset System is unbeatable for trouble-free ploughing. The clever multi-leaf spring system allows the plough legs to release independently and smoothly over stones and other solid objects, avoiding sudden jolts and possible damage. Once the obstruction is passed, the plough body automatically returns to the correct depth.

The RM2005 Series can be equipped with leaf springs to suit various soil types. For softer soils, the normal package with 5 leaves does the job. By contrast, the extra heavy-duty spring package includes 8 leaves, for harder and stonier settings and extreme soil conditions. Leaves are easily fixed by one central bolt.

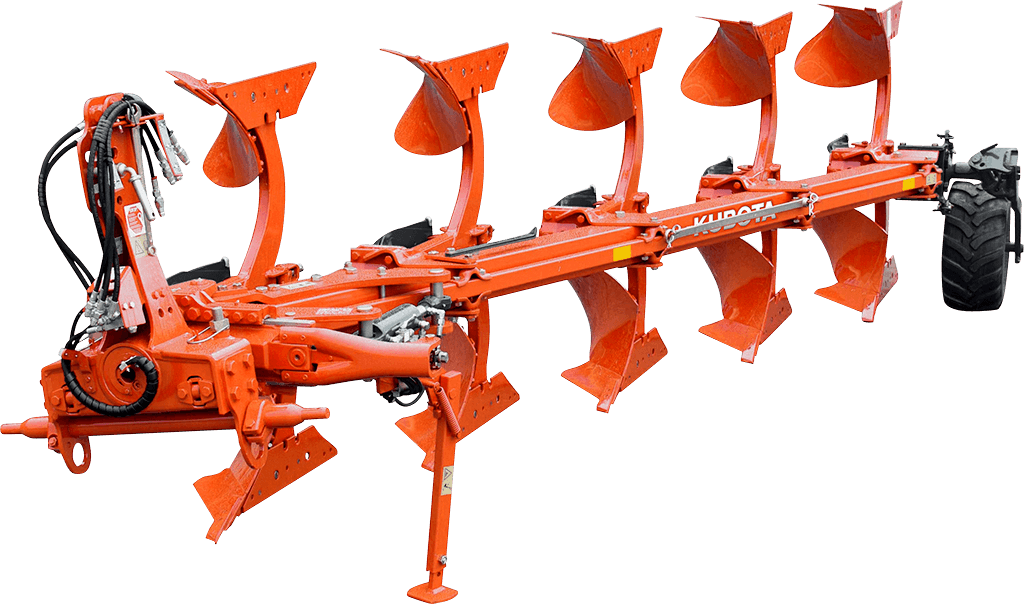

The RM3005V Series incorporates Kubota’s advanced steel and heat-treatment technology over the entire plough. Stronger, harder steel means less weight means reduced lift requirements and easier pulling compared to other brands. The RM3005V is easy to operate and adjust, with a remarkable non-stop leg protection system for continuous ploughing and no maintenance.

Hydraulic front furrow adjustment and hydraulic alignment of the frame are standard, and use our Variomat system for stepwise adjustable working width from 300 to 500 mm. Coupling options include cross shaft, Cat. II and Cat. III or quick coupling.

Kubota plough frames are heat treated by induction twice, with closely monitored temperature transfer, to ensure strong and uniform steel throughout that’s as much as 3 times stronger. Our frames are robust, flexible and durable, and the lighter weight ratio improves pulling force, lift capacity, wear and tear, fuel consumption and ultimately tractor lifetime. RM3005V frames have no welds and therefore no critical fail points, and the 150 x 150 mm central beam will do up to 6 furrows.

The RM3005V Series includes 2 bodies, both good for tractors with wide tyres. The steel board (#28) is suitable for all soils, wheels up to 710 mm, easy pulling and good turning. The plastic mouldboard (#34) is longer and slimmer, for soils with high humus content but no sharp stones. Working depths vary from 150 to 300/350 mm, respectively.

Kubota’s heat-treatment expertise provides steel that withstands even the toughest conditions. While other manufacturers add steel and therefore weight for strength, our robust heat-treatment technology delivers the best performance-to-weight ratio on the market, with excellent hardness and wear quality.

Kubota’s automatic non-stop Auto-Reset System is unbeatable for trouble-free ploughing. The clever multi-leaf spring system allows the plough legs to release independently and smoothly over stones and other solid objects, avoiding sudden jolts and possible damage. Once the obstruction is passed, the plough body automatically returns to the correct depth.

The RM3005V Series can be equipped with leaf springs to suit various soil types. For softer soils, the normal package with 5 leaves will do the job. By contrast, the extra heavy-duty spring package includes 8 leaves, for harder and stonier settings and extreme soil conditions. Leaves are easily fixed by one central bolt.

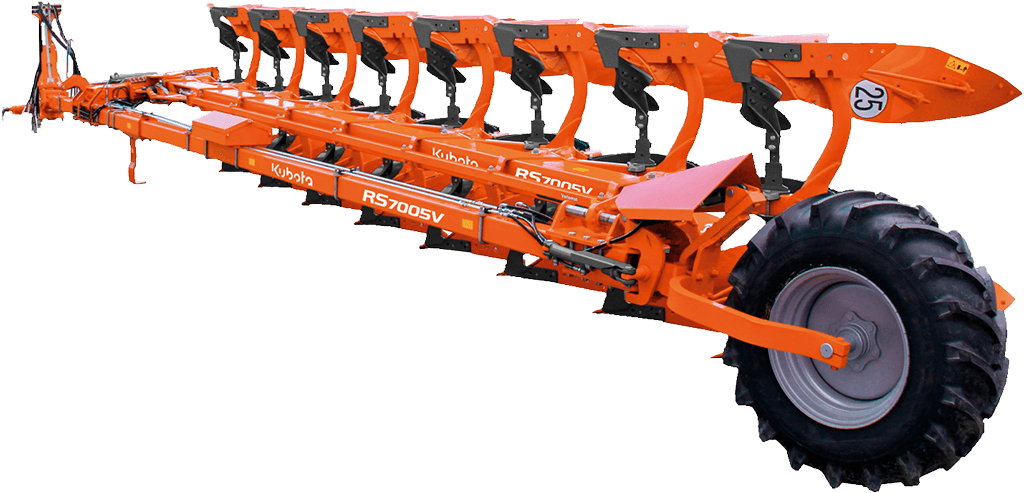

The RS7005V uses a new aero-profile leg for better soil flow. Paired with optional centrally adjustable skimmers, this plough leg design means better performance in the field.

Hydraulic front furrow adjustment and hydraulic alignment of the frame are available, and use our Variomat system for stepwise adjustable working width from 350 to 550 mm. Coupling options include cross shaft, Cat. III and Cat. IV choices.

Kubota plough frames are heat treated by induction twice, with closely monitored temperature transfer, to ensure strong and uniform steel throughout that’s as much as 3 times stronger. Our frames are robust, flexible and durable, and the lighter weight ratio improves pulling force, lift capacity, wear and tear, fuel consumption and ultimately tractor lifetime. RS7005V frames have no welds and therefore no critical fail points, and the 200 x 200 mm central beam will do up to 8 furrows.

The RS7005V Series includes 2 bodies, both good for tractors with wide tyres. The steel board (#38) is suitable for all soils, wheels up to 710 mm, easy pulling and good turning. The plastic mouldboard (#34) is good for soils with high humus content but no sharp stones. Maximum working depth is 350 mm.

Kubota’s heat-treatment expertise provides steel that withstands even the toughest conditions. While other manufacturers add steel and therefore weight for strength, our robust heat-treatment technology delivers the best performance-to-weight ratio on the market, with excellent hardness and wear quality.

Kubota’s automatic non-stop Auto-Reset System is unbeatable for trouble-free ploughing. The clever multi-leaf spring system allows the plough legs to release independently and smoothly over stones and other solid objects, avoiding sudden jolts and possible damage. Once the obstruction is passed, the plough body automatically returns to the correct depth.

The RS7005V Series can be equipped with leaf springs to suit various soil types. For softer soils, the normal package with 5 leaves will do the job. By contrast, the extra heavy-duty spring package includes 8 leaves, for harder and stonier settings and extreme soil conditions. Leaves are easily fixed by one central bolt.

Kubota’s RS7005V large rear wheel offers ultimate stability especially in wet conditions, by distributing weight evenly to limit sinking and soil compaction. The massive 440/80R24 radial tyre handles even the most difficult conditions.
