Kubota Land Pride RTA12 and RTR12 Rotary Tillers
Looking for a Kubota Land Pride RTA12 and RTR12 Rotary Tillers? Growers Services sells, services and supports Kubota implements from our Kubota branches at Mildura, Ballarat, Swan Hill, Echuca, St Arnaud and Renmark.

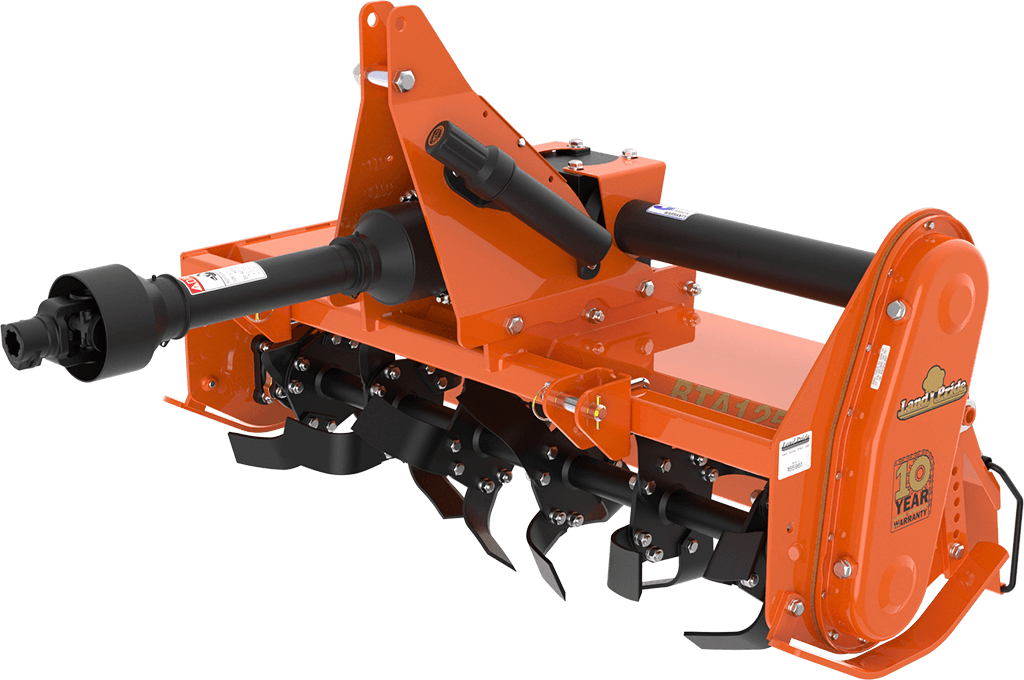

Land Pride's RTA12 Series forward rotation Rotary Tillers are a great seedbed preparation tool. With uses in rural and non-rural applications like landscaping and gardening, the 12 Series Rotary Tillers offer an economical yet durable tilling solution. These units feature a- 3 year gearbox warranty, 10 year chain and sprocket warranty, and 6-1/2" tilling depth. Look for the RTR12 Series for your reverse rotation alternative.
Features
Quick Hitch
Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.
Offset capabilities
Offset capabilities allow the tiller to work closer to objects such as fence lines, buildings, or trees.
Gearbox
Cast iron gearbox provides durability and our 3 Year Limited Gearbox Warranty demonstrates our confidence in the gearbox's quality and lasting performance.
Stamped chain case
Land Pride’s proven chain and sprocket drive system are among the most reliable in the industry. To prove it we are offering: Year 1, the warranty covers parts and labor, Years 2 through 10 are parts only.

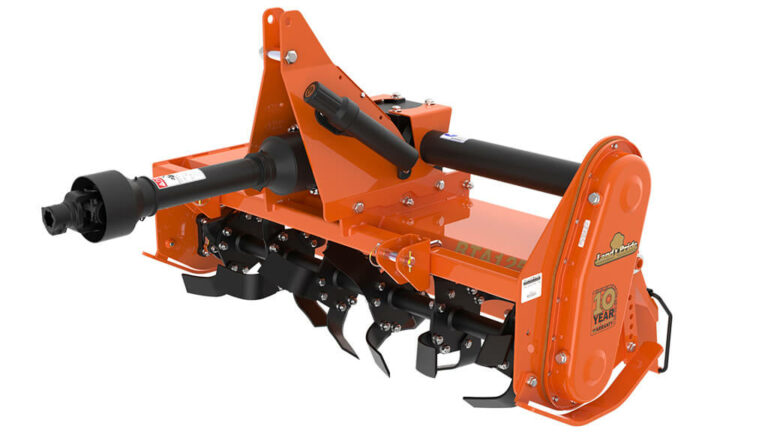

Four tines
4 ‘C’ shaped heat-treated tines per flange. “C” Shaped tines require less hp to move through the ground. Four tines requires less horsepower than 6 tine.
Specifications
| Model | RTA1242 | RTA1250 | RTA1258 | RTA1266 | RTA1274 | RTA1282 |
|---|---|---|---|---|---|---|
| Specifications | ||||||
| Horsepower | 15-40 hp | 15-40 hp | 20-50 hp | 20-50 hp | 25-60 hp | 30-60 hp |
| Weight | 177 kg | 191 kg | 203 kg | 216 kg | 228 kg | 250 kg |
| Number of Flanges | 5 | 6 | 7 | 8 | 9 | 10 |
| Skid shoe setting | 7 | 7 | 7 | 7 | 7 | 7 |
| Rotor shaft speed (at 540rpm PTO) | 211 rpm | 211 rpm | 211 rpm | 211 rpm | 211 rpm | 211 rpm |
| PTO driveline category | 3 | 3 | 3 | 3 | 3 | 3 |
| PTO driveline protection | Slip clutch | Slip clutch | Slip clutch | Slip clutch | Slip clutch | Slip clutch |
| Gearbox rating | 60 hp | 60 hp | 60 hp | 60 hp | 60 hp | 60 hp |
| Gearbox speed | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm |
| Gearbox design | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug |
| Drive chain | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath |
| Sprockets | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center |
| Dimensions | ||||||
| Width (endplate to endplate) | 107 cm | 127 cm | 147 cm | 168 cm | 188 cm | 208 cm |
| Overall Width | 47-3/8 " | 55-3/8 " | 63-3/8 " | 71-3/8 " | 79-3/8 " | 87-1/8 " |
| Rotor swing diameter | 15 " | 15 " | 15 " | 15 " | 15 " | 15 " |
| Max. tilling depth | 6-1/2 " | 6-1/2 " | 6-1/2 " | 6-1/2 " | 6-1/2 " | 6-1/2 " |
| Hitch | ||||||
| Hitch | Cat.1 | Cat.1 | Cat.1 | Cat.1 | Cat.1 | Cat.1 |
| Blades | ||||||
| No. of blades per flange | 4 | 4 | 4 | 4 | 4 | 4 |
| Blade shape | C-shape | C-shape | C-shape | C-shape | C-shape | C-shape |
| Blade spacing | 7-7/8 " | 7-7/8 " | 7-7/8 " | 7-7/8 " | 7-7/8 " | 7-7/8 " |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.

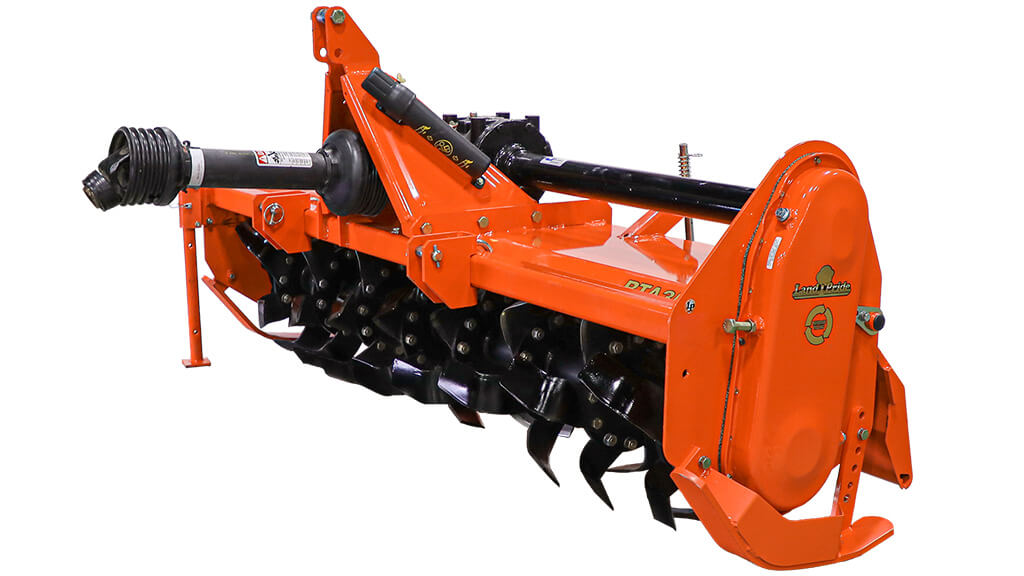

The Land Pride RTR12 Series reverse-till Rotary Tillers turn the soil to prepare a seedbed for gardening or lawn seeding. With uses in both rural and non-rural applications like landscaping and gardening, the RTR12 Series offers an economical tilling solution. The RTR12, and all Land Pride reverse rotation tillers, tends to achieve greater depth of penetration, moving and pulverizing more soil in the process, while burying residue as opposed to leaving it on top. Please note, that the Quick-Hitch may require a longer driveline, which is available through Land Pride Parts.
Features
Quick Hitch
Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.
Offset capabilities
Offset capabilities allow the tiller to work closer to objects such as fence lines, buildings, or trees.
Gearbox
The cast iron gearbox offers a 3 Year Limited Gearbox Warranty, which demonstrates our confidence in the gearbox's quality and lasting performance and durability.
Stamped chain case
Land Pride’s proven chain and sprocket drive system are among the most reliable in the industry. To prove it we are offering: Year 1, the warranty covers parts and labor, Years 2 through 10 are parts only.
Four tines
There are 4 ‘C’ shaped heat-treated tines per flange, which require less hp to move through the ground compared to conventional times. Four tines requires less horsepower than 6 tines.

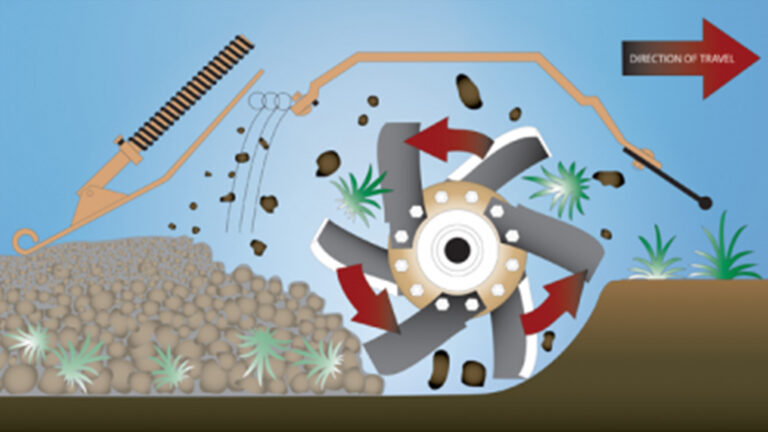

Reverse tilling
Reverse action ‘sucks’ the tiller into the ground and doesn't walk on top of hard ground like forward rotation tillers can.
Specifications
| Model | RTR1242 | RTR1250 | RTR1258 | RTR1266 | RTR1274 | RTR1282 |
|---|---|---|---|---|---|---|
| Specifications | ||||||
| Horsepower | 15-40 hp | 15-40 hp | 20-50 hp | 20-50 hp | 25-60 hp | 30-60 hp |
| Weight | 183 kg | 197 kg | 210 kg | 224 kg | 236 kg | 264 kg |
| Number of Flanges | 5 | 6 | 7 | 8 | 9 | 10 |
| Skid shoe setting | 7 | 7 | 7 | 7 | 7 | 7 |
| Rotor shaft speed (at 540rpm PTO) | 211 rpm | 211 rpm | 211 rpm | 211 rpm | 211 rpm | 211 rpm |
| PTO driveline category | 3 | 3 | 3 | 3 | 3 | 3 |
| PTO driveline protection | Slip clutch | Slip clutch | Slip clutch | Slip clutch | Slip clutch | Slip clutch |
| Gearbox rating | 60 hp | 60 hp | 60 hp | 60 hp | 60 hp | 60 hp |
| Gearbox speed | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm |
| Gearbox design | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug | Cast iron housing/drain plug |
| Drive chain | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath | #80 high tensile in oil bath |
| Sprockets | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center | Hardened teeth, splined center |
| Dimensions | ||||||
| Width (endplate to endplate) | 107 cm | 127 cm | 147 cm | 168 cm | 188 cm | 208 cm |
| Overall Width | 48-1/4 " | 56-1/4 " | 64-1/4 " | 72-1/4 " | 80-1/4 " | 87-1/4 " |
| Rotor swing diameter | 15 " | 15 " | 15 " | 15 " | 15 " | 15 " |
| Max. tilling depth | 6-1/2 " | 6-1/2 " | 6-1/2 " | 6-1/2 " | 6-1/2 " | 6-1/2 " |
| Hitch | ||||||
| Hitch | Cat.1 | Cat.1 | Cat.1 | Cat.1 | Cat.1 | Cat.1 |
| Blades | ||||||
| No. of blades per flange | 4 | 4 | 4 | 4 | 4 | 4 |
| Blade shape | C-shape | C-shape | C-shape | C-shape | C-shape | C-shape |
| Blade spacing | 7-7/8 " | 7-7/8 " | 7-7/8 " | 7-7/8 " | 7-7/8 " | 7-7/8 " |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
