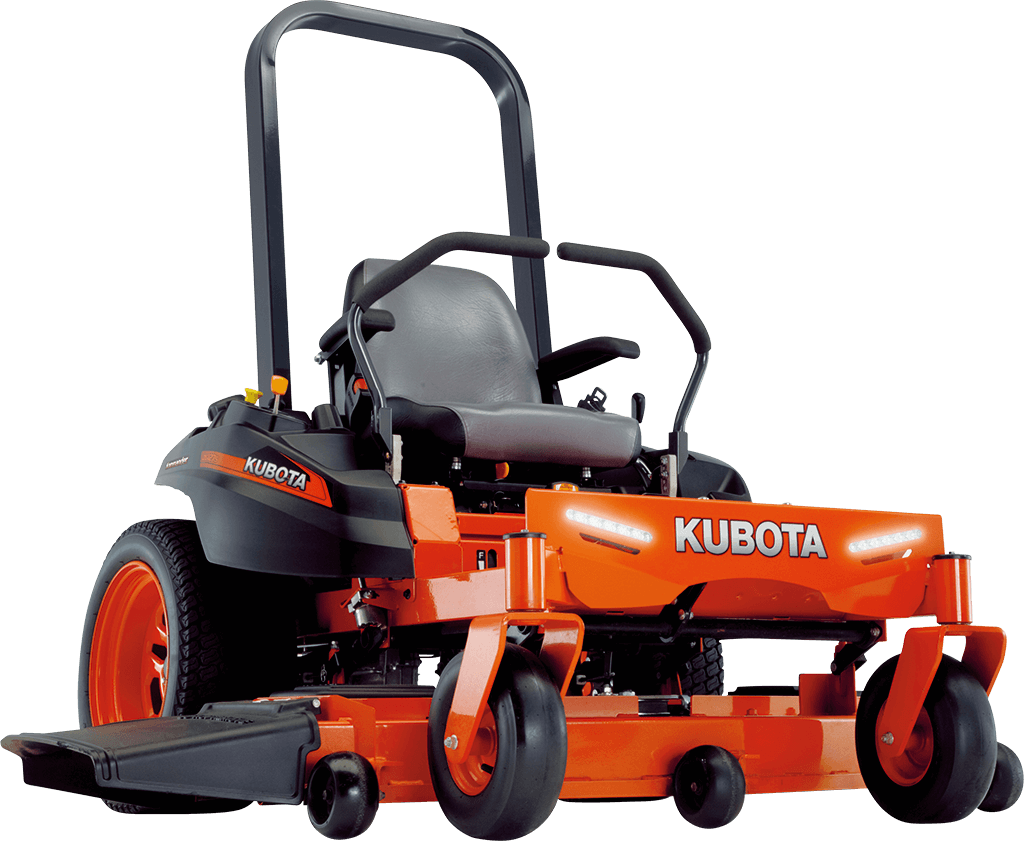

Kubota Z200 Series Zero-Turn Mowers
The Kubota Z200 Series Zero-Turn mower range includes 5 models: Z232KW-42, Z242KH-48, Z242KW-48, Z252KH-54, Z252KW-54. Growers Services sells, services and supports Kubota mowers from our Kubota branches at Mildura, Ballarat, Swan Hill, Echuca, St Arnaud and Renmark.
Kubota’s residential Z200 Series manoeuvre through landscapes with comfort and ease. Have it all - style, comfort and performance, matched with Kubota’s excellence in quality and durability. Engineered especially for homeowners with exclusive, easy-to-use features and complete with a heavy-duty fabricated mower decks, this innovative mower range offers unmatched comfort with excellent stability, well-placed controls and a low centre of gravity. Select from 5 model variations with 42″, 48″ or 54″ mower deck options.
Features
Zero-Turn Manoeuvrability
Z200 series manoeuvres quickly and efficiently, reducing mowing times by allowing quick, sharp turns. Couple that with the Z200's ability to get into tight spaces to navigate obstacles like garden beds and trees with ease.
Rugged, low-maintenance and integrated transmission design delivers outstanding power and operational efficiency to the wheels and mower deck. Dual operation levers provide smooth, precise control for delicate trimming.
High Quality Mower Deck
Constructed of durable 10 gauge steel, the welded mower decks provides outstanding, professional-level cutting performance for years of dependable use.
Contoured mower decks come in three sizes, 42", 48" and 54" that raise and lower via a manual foot pedal located in the centre of the foot platform. A height adjustment dial allows the operator to quickly adjust mowing cut height from 1″ to 4″, in 1/4″ increments.
Available with an optional mulching kit or Grass Catcher that easily attaches and detaches in minutes without the use of tools.
Super Comfortable
The comfortable seat slides a full 6″ forward and back, letting you find just the right seating position for maximum personal comfort. This high back seat will keep you comfortable even on those extra-long mowing jobs. And there’s plenty of legroom up front, thanks to a wide foot pan.
An ergonomic control layout means all controls and indicators are placed for quick, easy, user-friendly access.
Features 4 storage boxes for tools or anything else you need to carry. Keep your drink always handy with integrated cup holders.
Stand-Out Performance and Stability
Powerful air-cooled V-Twin petrol engines provide high performance and reliability. Whatever the mowing job, you can count on the Z200 Series to deliver power when you need it.
Protect your lawn with wide tread tyres for better traction and weight distribution. The Ultrascaper Z rear tyres also mean a softer ride.
Safety
Equipped with full-height ROPS protection and seatbelt for safety and added peace of mind.
Optional LED light kit allows you to continue mowing in low light conditions – standard on KW 48" and 54" models & optional on KH models & Z232KW-42.
Specifications
| Model | Z232KW-42 | Z242KH-48 | Z242KW-48 | Z252KH-54 | Z252KW-54 |
|---|---|---|---|---|---|
| Engine | |||||
| Engine Type | Air-cooled V-Twin | Air-cooled V-Twin | Air-cooled V-Twin | Air-cooled V-Twin | Air-cooled V-Twin |
| Fuel Type | Petrol | Petrol | Petrol | Petrol | Petrol |
| Cylinders | 2 | 2 | 2 | 2 | 2 |
| Engine Model | Kawasaki | Kohler | Kawasaki | Kohler | Kawasaki |
| Engine Gross | 21.5 hp | 22 hp | 21.5 hp | 26 hp | 24 hp |
| Displacement | 726 cc | 747 cc | 726 cc | 747 cc | 726 cc |
| Fuel Tank Capacity | 13.6 l | 16.3 l | 16.3 l | 16.3 l | 16.3 l |
| Rated Speed | 3600 rpm | 3600 rpm | 3600 rpm | 3600 rpm | 3600 rpm |
| Drive Train | |||||
| Transmission | Hydro-Gear ZT2200 | Hydro-Gear ZT3100 | Hydro-Gear ZT3100 | Hydro-Gear ZT3100 | Hydro-Gear ZT3100 |
| Drive Method | Integral Type HST, Belt Driven | Integral Type HST, Belt Driven | Integral Type HST, Belt Driven | Integral Type HST, Belt Driven | Integral Type HST, Belt Driven |
| Brakes | Dry Brakes with Hand Lever Applied/Released Parking Brake | Dry Brakes with Hand Lever Applied/Released Parking Brake | Dry Brakes with Hand Lever Applied/Released Parking Brake | Dry Brakes with Hand Lever Applied/Released Parking Brake | Dry Brakes with Hand Lever Applied/Released Parking Brake |
| PTO | Belt Drive with Ogura GT1A Electric Clutch | Belt Drive with Ogura GT1A Electric Clutch | Belt Drive with Ogura GT1A Electric Clutch | Belt Drive with Ogura GT1A Electric Clutch | Belt Drive with Ogura GT1A Electric Clutch |
| Tyre Size | |||||
| Front | 11×4-5 | 13x6.5-6 | 13x6.5-6 | 13x6.5-6 | 13x6.5-6 |
| Rear | 18×7.5-10 | 22x10-14 | 22×10-14 | 22×10-14 | 22×10-14 |
| Travelling Speeds | |||||
| Max. Forward Speed | 10.5 km/h | 12.9 km/h | 12.9 km/h | 12.9 km/h | 12.9 km/h |
| Max. Reverse Speed | 6.4 km/h | 6.4 km/h | 6.4 km/h | 6.4 km/h | 6.4 km/h |
| Mower Deck | |||||
| Model | RCK42P-122Z | RCK48P-200Z | RCK48P-1200Z | RCK54P-200Z | RCK54P-200Z |
| Mower Lift System | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Mower Deck Type | Pro commercial fabricated | Pro commercial fabricated | Pro commercial fabricated | Pro commercial fabricated | Pro commercial fabricated |
| Deck Depth | 114 mm | 127 mm | 127 mm | 127 mm | 127 mm |
| Belt Type | Single belt | Single belt | Single belt | Single belt | Single belt |
| Deck Steel Thickness | 3.4 mm | 3.4 mm | 3.4 mm | 3.4 mm | 3.4 mm |
| Cutting Width | 42 in. | 48 in | 48 in. | 54 in. | 54 in. |
| Number of Blades | 2 | 3 | 3 | 3 | 3 |
| Cutting Height | 1.5 in. - 4.25 in. 1/4" increments in. | 1.5 in. - 4.5 in. 1/4" increments in. | 1.5 in. - 4.5 in. 1/4" increments in. | 1.5 in. - 4.5 in. 1/4" increments in. | 1.5 in. - 4.5 in. 1/4" increments in. |
| Mower Mounting System | Parallel linkage | Parallel linkage | Parallel linkage | Parallel linkage | Parallel linkage |
| Blade Tip Speed Max. | 17700 fpm | 18100 fpm | 18100 fpm | 18100 fpm | 18100 fpm |
| Grass Catcher - Optional | |||||
| Bag Type | 2 bag, Manual dump | 2 bag, Manual dump | 2 bag, Manual dump | 2 bag, Manual dump | 2 bag, Manual dump |
| Bag Capacity | 140 l | 211 l | 211 l | 211 l | 211 l |
| Hopper Type | No | No | No | No | No |
| Hopper Capacity | No | No | No | No | No |
| Dimensions | |||||
| Length | 1890 mm | 2006 mm | 2006 mm | 2006 mm | 2006 mm |
| Width | 1400 mm | 1552 mm | 1552 mm | 1710 mm | 1710 mm |
| Height (w/ ROPS Upright) | 1693 mm | 1855 mm | 1738 mm | 1855 mm | 1738 mm |
| Wheelbase | 1236 mm | 1195 mm | 1195 mm | 1195 mm | 1195 mm |
| Ground Clearance | 104 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Tread Front | 616 mm | 826 mm | 826 mm | 826 mm | 826 mm |
| Tread Rear | 885 mm | 964 mm | 964 mm | 964 mm | 964 mm |
| Weight | 292 kg | 368 kg | 383 kg | 375 kg | 390 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
