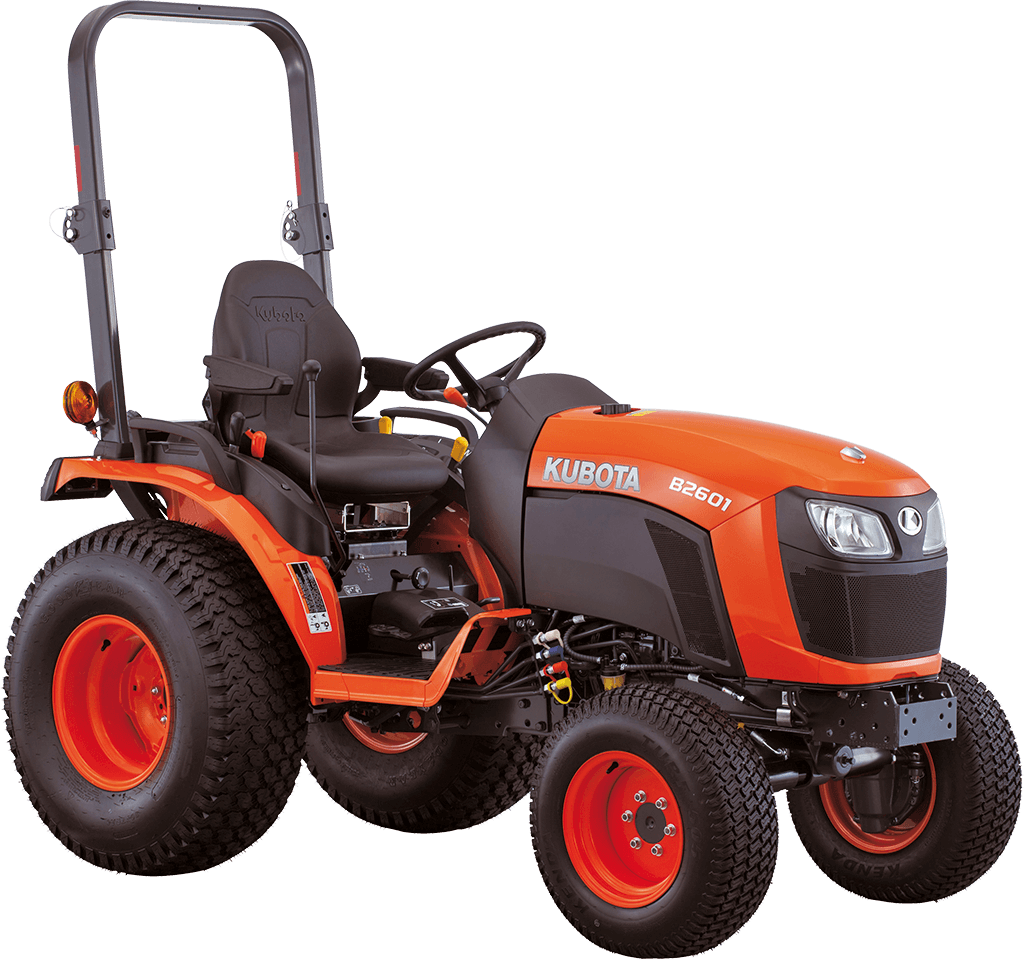

Kubota B01 Series Tractors – 22–25.5 hp
The Kubota B01 Series is a range of 22–25.5 hp compact tractors. Growers Services sells, services and supports Kubota tractors from our Kubota branches at Mildura, Ballarat, Swan Hill, Echuca, St Arnaud and Renmark.
Whether you’re mowing lawns, working on light construction, or landscaping, Kubota’s B01 tractors are the ideal tools for the job. Both models offer a wide range of innovative features to provide more comfort and more efficiency, for the utmost in productivity. Combine the ease-of-use and versatility with the power and reliability of renowned Kubota engines and transmissions, and you can consider almost any task complete.
Features
Engine
22HP/25.5HP liquid-cooled diesel engines, with Kubota’s E-TVCS (three-vortex combustion system), offers tremendous power, high torque, cleaner emissions, and low vibration.
Transmission
Our proven 3-range hydrostatic transmission provides the B01 Series with smooth shifting and powerful performance. With an increased maximum speed and three range shift-speeds (Low/Med/ High), the B01 models let you find the right speed to suit your task, for outstanding productivity.
Equipped with twin operating pedals to offer exceptional handling with frequent changes of speed and direction.
Rugged and sturdy 4-wheel drive (4WD) provides powerful traction for heavy duty front end loader work and operating rear linkage implements.
Select from turf, bar or industrial tyres.
The Driver's Seat
Thanks to a large, ISO-mounted flat deck, the operator enjoys plenty of legroom and a wider step area for easier mounting and dismounting. Widely spaced fenders also contribute to a comfortable, spacious environment.
To make your ride comfortable no matter the conditions, the new high-back seat is specifically designed to absorb shock, reducing operator fatigue. For added comfort, armrests are standard equipment and the steering wheel tilts to your desired angle.
Hydraulics & PTO
The Independent PTO provides continuous travel movement since it is independent from the HST travel control, while the 3-point hitch accepts a variety of implements for all your varying needs. Robust and versatile, the hitch can handle rotary tillers, box blades, finishing mowers, and more. Attaching and detaching rear implements is simple. The horizontal sway of the implement is easily adjusted by aligning and setting the pin in the proper hole.
Hydraulic power steering offers effortless control to reduce operator fatigue. With an overall length similar to a standard garden tractor, the tractors are easy to drive and offers smooth operation even in the tightest spaces. Due to their compact size, these tractors are also incredibly gentle on turf.
The B01 Series offers two optional rear remote control valves to allow acceptance of hydraulically powered rear implements.
Specifications
| Model | B2301HD | B2601HD |
|---|---|---|
| Engine | ||
| Fuel Type | Diesel | Diesel |
| Cylinders | 3 | 3 |
| Engine Model | Kubota D1005 | Kubota D1005 |
| Engine Gross | 22 hp | 25.5 hp |
| PTO | 17.5 hp | 19.5 hp |
| Displacement | 1001 cc | 1123 cc |
| Fuel Tank Capacity | 23 l | 23 l |
| Rated Speed | 2800 rpm | 2800 rpm |
| Drive Train | ||
| Transmission | HST | HST |
| Ranges | 3 Range | 3 Range |
| Drive Method | 4WD | 4WD |
| Brakes | Wet Disc | Wet Disc |
| PTO 540 | 2768 rpm | 2768 rpm |
| PTO 2500 | 2753 rpm | 2753 rpm |
| Hydraulics | ||
| Hydraulic Pump Output | 31.4 l/min | 31.4 l/min |
| 3-Point Hitch | Category I | Category I |
| Rear Linkage Lift Capacity | 640 kg | 640 kg |
| Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Tyre Options | ||
| AG | Yes | Yes |
| Industrial | Yes | Yes |
| Turf | Yes | Yes |
| Travelling Speeds | ||
| Minimum Low Speed | 0 km/h | 0 km/h |
| Maximum High Speed | 19.1 km/h | 20.4 km/h |
| Dimensions | ||
| Length | 2380 mm | 2410 mm |
| Width | 1150 mm | 1245 mm |
| Height | 2130 mm | 2160 mm |
| Wheelbase | 1560 mm | 1560 mm |
| Ground Clearance | 305 mm | 325 mm |
| Turning Radius | 2.1 m | 2.1 m |
| Tractor Weight | 710 kg | 740 kg |
Specifications supplied by Kubota Australia and may change without notice. Please confirm details with our sales team.
