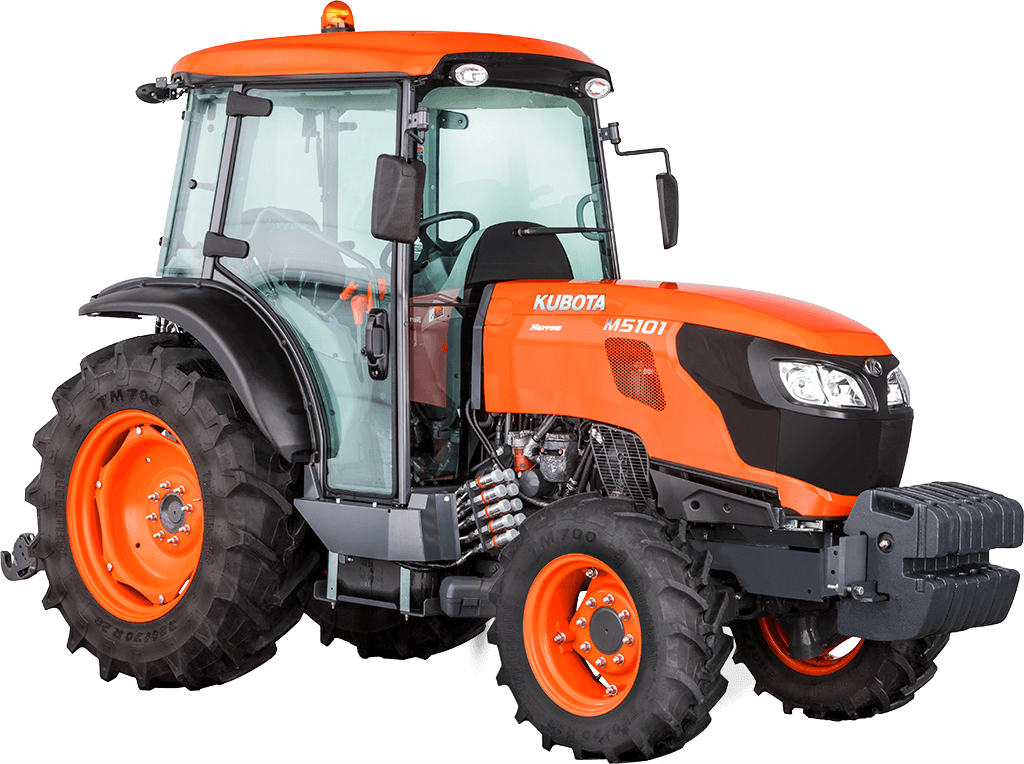

Kubota M5091 / M5101 Narrow Tractors – 87–105 hp

The M5 Narrow Series is powered by a 3.8l Kubota engine with electronic engine control to optimise the efficiency the engine output. These rugged engines also offer cleaner Tier 3b emission compliance, quieter operation, and greater fuel efficiency. The M5001 Series engines run at lower engine speeds without any loss of performance, thanks to improved torque and performance settings. Lower engine speeds also mean quieter operation, less engine wear, and greater fuel efficiency. The M5001 Series engines feature a new electronic governor that gives you electronic control of engine RPM. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO-driven implements much more efficient.

Whatever the task, there’s a gear that will get it done. The M5001 Series offers— 18 forward and 18 reverse —from six synchronised gears in three ranges. Dual Speed (splitter) technology in the leading models takes this to 36 forward and 36 reverse gears at the push of a button on the gear lever.

The M5001 Series provides the most efficient speed for every task, from traveling to field and pasture work and horticultural applications. Gear and direction changes are efficient, too, with a single-lever, fully synchronized transmission and an electro-hydraulic shuttle that makes direction change . A single shift lever makes shifting between gears smooth, simple, and direct. The Over Drive function keeps the engine revolutions at around 2000 rpm during high speed driving for better fuel economy. An electro-hydraulic shuttle lever lets you quickly and easily change directions without using the clutch. Simply flick the lever forward or backward, and the M5001 Series tractor instantly changes direction without first having to stop. The lever is located on the left side of the steering wheel for easy access. Faster, simpler direction changes means improved productivity, particularly when working with a front loader, which requires frequent back-and-forth movements.

Just like the standard M5001 Series, the M5001N Series offers a supreme level of operator comfort, with an all- glass cab and rounded windows for excellent visibility, wide doors on each side, generous head and leg room to accomodate tall operators, and a sophisticated air conditioning system that provides a pleasant cab environment no matter what the weather outside. The multifunction Intellipanel is the command center of the M5001N Series, providing a wealth of information about the current operating conditions and functions on a large and bright LCD panel. All important controls are located on the right side of the driver’s seat where they are easy to reach and ergonomically positioned for safe operation. The controls in the ROPS models are equally arranged in an ergonomic design.

The M5001 Narrow hydraulics and PTO are designed around the demands in vineyards and orchards. Ample lift capacity of 2300kg at ball ends and a category II 3-point linkage with quick hooks allows for easy attachment off all implements. The M5001N models feature the enhanced oil flow capacity of 68.6 l/min with 2 remote valves as standard specification and up to 5 remotes in total as optional kits including valves with couplers at the mid-mount position of the tractor to cater for front or side-mounted specialist implements. The PTO is a 540/540E speed design with an optional three speed 540/540E/1000 kit available for even more flexibility in the driveline.

Specifically designed for work in vineyards, orchards, and other narrow job sites, the M5001N Series are just under 1.4m wide with standard tires. Rounded fenders and foldable hazard lights, which help maintain the narrow dimensions of these models, are standard equipment.
