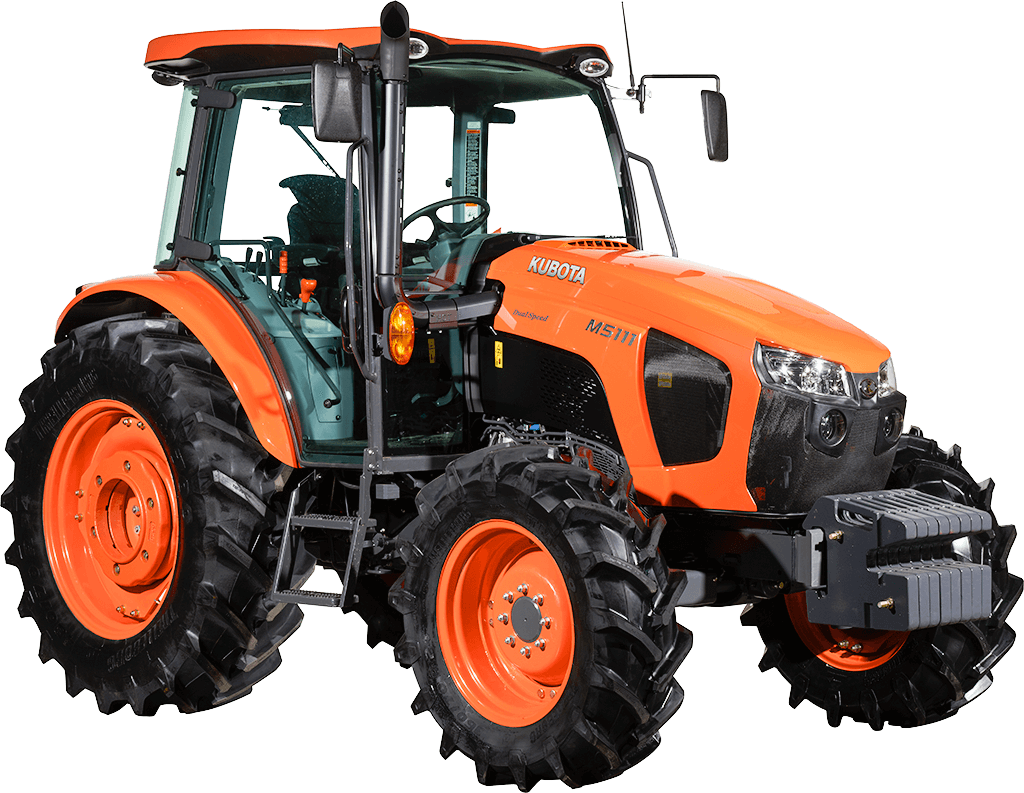

Kubota M5091 / M5111 Tractors – 93–110.5 hp

The M5 Series is powered by a 3.8l Kubota engine with electronic engine control to optimise the efficiency of the engine output. These rugged engines also offer cleaner Tier 3b emission compliance, quieter operation, and greater fuel efficiency. The M5001 Series engines run at lower engine speeds without any loss of performance, thanks to improved torque and performance settings. Lower engine speeds also mean quieter operation, less engine wear, and greater fuel efficiency. The M5001 Series engines feature a new electronic governor that gives you electronic control of engine RPM. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO-driven implements much more efficient.

Whatever the task, there’s a gear that will get it done. The M5001 Series offers— 18 forward and 18 reverse —from six synchronised gears in three ranges. Dual Speed (splitter) technology in the leading models takes this to 36 forward and 36 reverse gears at the push of a button on the gear lever.

The M5001 Series provides the most efficient speed for every task, from travelling to field and pasture work and even vegetable plot work. Gear and direction changes are efficient with a single-lever, fully synchronized transmission and an electro-hydraulic shuttle that makes direction change. A single shift lever makes shifting between gears smooth, simple, and direct. The Over Drive function keeps the engine revolutions at around 2000 rpm during high speed driving for better fuel economy. An electro-hydraulic shuttle lever lets you quickly and easily change directions without using the clutch. Simply flick the lever forward or backward, and the M5001 Series tractor instantly changes direction without first having to stop. The lever is located on the left side of the steering wheel for easy access. Faster, simpler direction changes means improved productivity, particularly when working with a front loader, which requires frequent back-and-forth movements.

A comfortable operator is a productive operator, so the M5001 Series makes sure that you are comfortable throughout even the longest working days. From the all-glass cab and wide cabin doors on both sides to the supremely comfortable deluxe seat, generous head and leg room, and sophisticated air conditioning system, the M5001 Series provides a level of comfort and efficiency seldom found in tractors of this class. The all-glass cab and a newly designed bonnet ensure excellent visibility in all directions, including both front and rear implements as well as the immediate working environment. The cab glass is curved to reduce glare and enhance spaciousness, while narrow pillars and a sloping bonnet increase visibility in all directions. Large doors on each side open wide for quick and easy entry and exit. Both doors are glass from top to bottom for greater visibility of the area around the doors. When combined with the level platform, ergonomically positioned pedals, entry and exit are safe, convenient, and quick. Available as an option, the instructor seat can be folded down when not in use, providing more space in the cab.

Impressive hydraulic power provides enough lift capacity to simultaneously lift implements, letting you quickly and efficiently take on even the most demanding implement work. The M5001 Series powerful hydraulics respond quickly to improve the efficiency of implement operations, particularly front loader tasks. External cylinders improve lift capacity to 3900kg at ball ends and ensure easy maintenance. The two control valves can be supplemented with an optional third hydraulic valve with or without flow control. The M5001 Series hitch control system provides separate control of both position and draft, ensuring optimal control when using ground engaging implements. Use position control to control the implements independently of the required tractive power. Draft control automatically adjusts to different soil conditions to maintain constant traction. Position and draft control can also be used together in draft mix. The independent PTO shaft runs at 540 rpm or 540 Eco rpm, letting you efficiently take on a wide range of tasks, from cutting grass to baling and spraying. A 540/1000 PTO speed option is also available. The PTO shaft brake engages automatically whenever the PTO shaft is disengaged to safely stop implements. The PTO shaft clutch can be engaged and disengaged electro-hydraulically on the run, improving the efficiency of all PTO applications.
